| Part Number | PAM2305CGF280 | PAM2305CGF180 | PAM2305CGF250 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete |
| Function | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck |
| Output Type | Fixed | Fixed | Fixed |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Input (Min) | 2.5V | 2.5V | 2.5V |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 2.8V | 1.8V | 2.5V |
| Voltage - Output (Max) | - | - | - |
| Current - Output | 1A | 1A | 1A |
| Frequency - Switching | 1.5MHz | 1.5MHz | 1.5MHz |
| Synchronous Rectifier | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

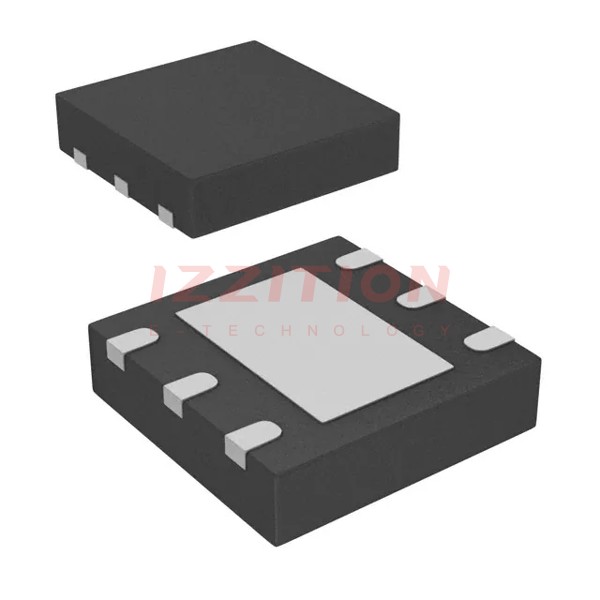

| Package / Case | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-DFN (2x2) | 6-DFN (2x2) | 6-DFN (2x2) |
