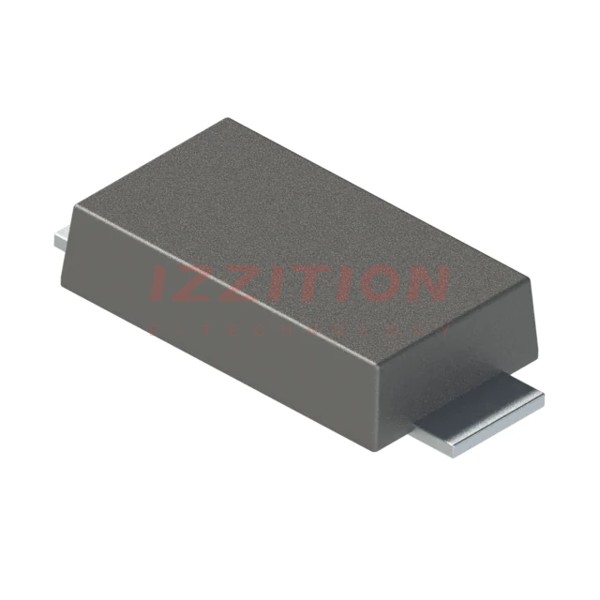

| Part Number | P6SMAJ70ADF-13 | P6SMAJ75ADF-13 | P6SMAJ78ADF-13 | P6SMAJ10ADF-13 | P6SMAJ20ADF-13 | P6SMAJ30ADF-13 | P6SMAJ40ADF-13 | P6SMAJ60ADF-13 | P6SMAJ7.0ADF-13 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 70V | 75V | 78V | 10V | 20V | 30V | 40V | 60V | 7V |
| Voltage - Breakdown (Min) | 77.8V | 83.3V | 86.7V | 11.1V | 22.2V | 33.3V | 44.4V | 66.7V | 7.78V |
| Voltage - Clamping (Max) @ Ipp | 113V | 121V | 126V | 17V | 32.4V | 48.4V | 64.5V | 96.8V | 12V |
| Current - Peak Pulse (10/1000µs) | 5.3A | 4.9A | 4.7A | 35.3A | 18.5A | 12.4A | 9.3A | 6.2A | 50A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead |
| Supplier Device Package | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat |
