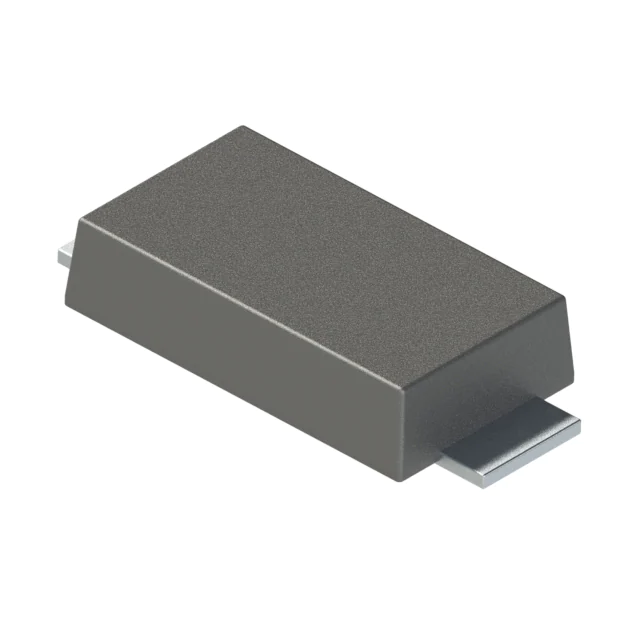

| Part Number | P6SMAJ7.5ADF | P6SMAJ8.5ADF | P6SMAJ75ADF | P6SMAJ6.5ADF | P6SMAJ7.0ADF |
|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 7.5V | 8.5V | 75V | 6.5V | 7V |
| Voltage - Breakdown (Min) | 8.33V | 9.44V | 83.3V | 7.22V | 7.78V |
| Voltage - Clamping (Max) @ Ipp | 12.9V | 14.4V | 121V | 11.2V | 12V |
| Current - Peak Pulse (10/1000µs) | 46.5A | 41.7A | 4.9A | 53.6A | 50A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead |
| Supplier Device Package | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat |
