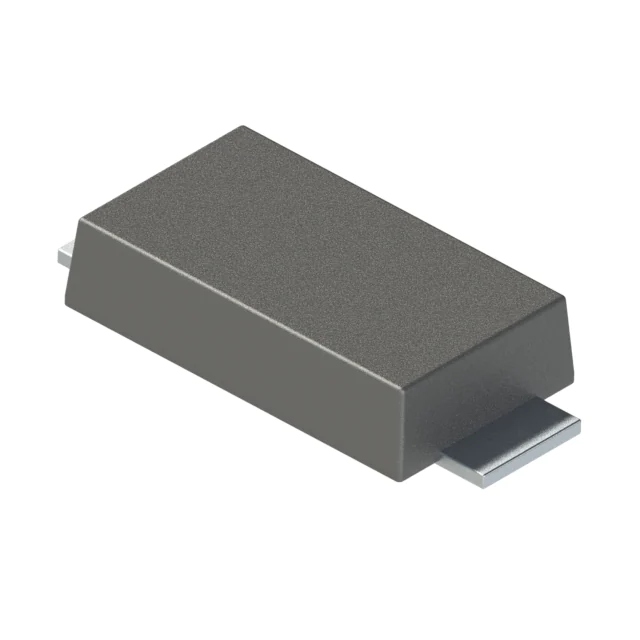

| Part Number | P6SMAJ48ADF-13 | P6SMAJ58ADF-13 | P6SMAJ78ADF-13 | P6SMAJ18ADF-13 | P6SMAJ28ADF-13 | P6SMAJ40ADF-13 | P6SMAJ43ADF-13 | P6SMAJ45ADF-13 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 48V | 58V | 78V | 18V | 28V | 40V | 43V | 45V |
| Voltage - Breakdown (Min) | 53.3V | 64.4V | 86.7V | 20V | 31.1V | 44.4V | 47.8V | 50V |
| Voltage - Clamping (Max) @ Ipp | 77.4V | 93.6V | 126V | 29.2V | 45.4V | 64.5V | 69.4V | 72.7V |
| Current - Peak Pulse (10/1000µs) | 7.7A | 6.4A | 4.7A | 20.5A | 13.2A | 9.3A | 8.6A | 8.3A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead |
| Supplier Device Package | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat |
