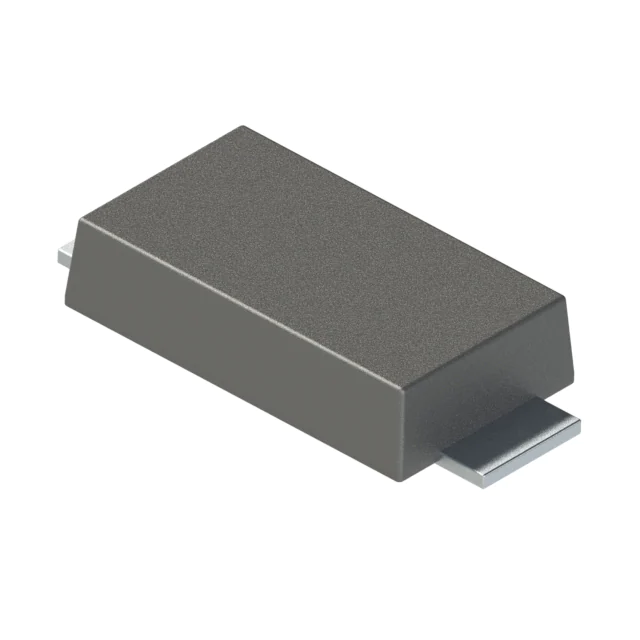

| Part Number | P6SMAJ33ADF-13 | P6SMAJ43ADF-13 | P6SMAJ36ADF-13 | P6SMAJ13ADF-13 | P6SMAJ30ADF-13 |
|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 33V | 43V | 36V | 13V | 30V |
| Voltage - Breakdown (Min) | 36.7V | 47.8V | 40V | 14.4V | 33.3V |
| Voltage - Clamping (Max) @ Ipp | 53.3V | 69.4V | 58.1V | 21.5V | 48.4V |
| Current - Peak Pulse (10/1000µs) | 11.3A | 8.6A | 10.3A | 27.9A | 12.4A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead |
| Supplier Device Package | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat |
