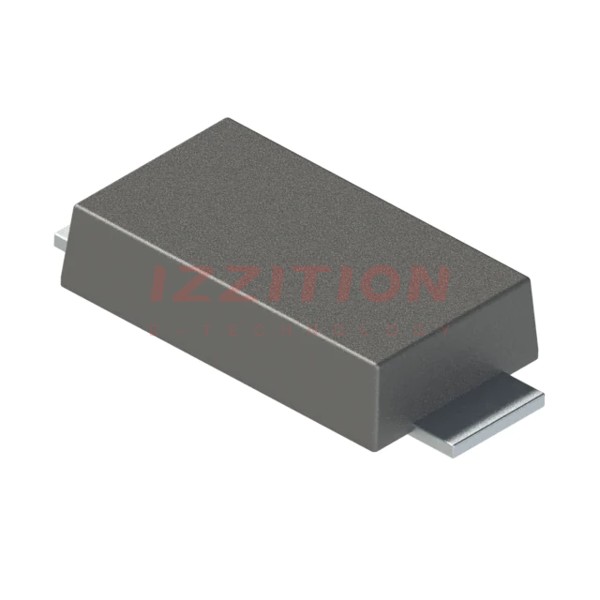

| Part Number | P6SMAJ20ADF-13 | P6SMAJ24ADF-13 | P6SMAJ28ADF-13 | P6SMAJ30ADF-13 | P6SMAJ60ADF-13 | P6SMAJ70ADF-13 | P6SMAJ22ADF-13 | P6SMAJ26ADF-13 | P6SMAJ40ADF-13 | P6SMAJ10ADF-13 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 20V | 24V | 28V | 30V | 60V | 70V | 22V | 26V | 40V | 10V |
| Voltage - Breakdown (Min) | 22.2V | 26.7V | 31.1V | 33.3V | 66.7V | 77.8V | 24.4V | 28.9V | 44.4V | 11.1V |
| Voltage - Clamping (Max) @ Ipp | 32.4V | 38.9V | 45.4V | 48.4V | 96.8V | 113V | 35.5V | 42.1V | 64.5V | 17V |
| Current - Peak Pulse (10/1000µs) | 18.5A | 15.4A | 13.2A | 12.4A | 6.2A | 5.3A | 16.9A | 14.2A | 9.3A | 35.3A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead |
| Supplier Device Package | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat |
