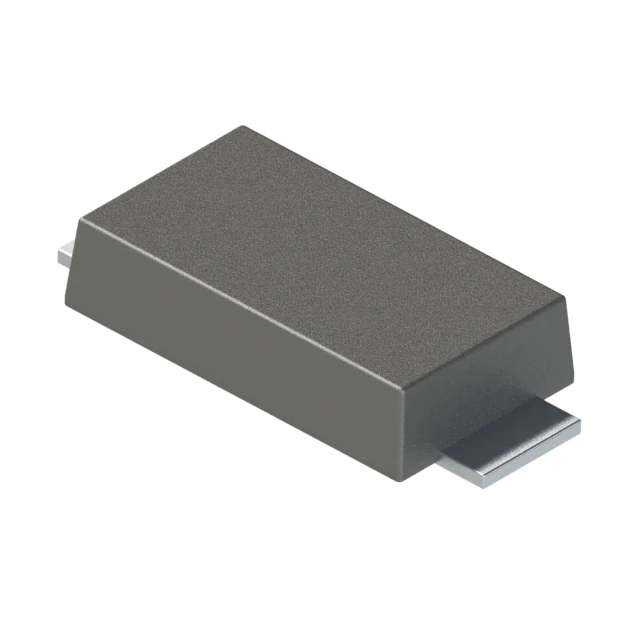

| Part Number | P6SMAJ14ADF-13 | P6SMAJ15ADF-13 | P6SMAJ24ADF-13 | P6SMAJ17ADF-13 | P6SMAJ18ADF-13 | P6SMAJ64ADF-13 | P6SMAJ16ADF-13 | P6SMAJ54ADF-13 | P6SMAJ10ADF-13 | P6SMAJ11ADF-13 | P6SMAJ12ADF-13 | P6SMAJ13ADF-13 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 14V | 15V | 24V | 17V | 18V | 64V | 16V | 54V | 10V | 11V | 12V | 13V |
| Voltage - Breakdown (Min) | 15.6V | 16.7V | 26.7V | 18.9V | 20V | 71.1V | 17.8V | 60V | 11.1V | 12.2V | 13.3V | 14.4V |
| Voltage - Clamping (Max) @ Ipp | 23.2V | 24.4V | 38.9V | 27.6V | 29.2V | 103V | 26V | 87.1V | 17V | 18.2V | 19.9V | 21.5V |
| Current - Peak Pulse (10/1000µs) | 25.8A | 24A | 15.4A | 21.7A | 20.5A | 5.8A | 23.1A | 6.9A | 35.3A | 33A | 30.2A | 27.9A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead |
| Supplier Device Package | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat |
