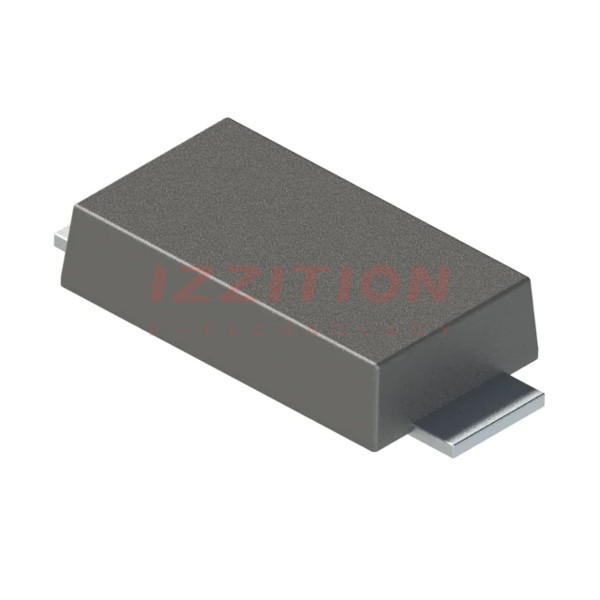

| Part Number | P4SMAJ75ADF-13 | P4SMAJ78ADF-13 | P4SMAJ7.5ADF-13 | P4SMAJ70ADF-13 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 75V | 78V | 7.5V | 70V |
| Voltage - Breakdown (Min) | 83.3V | 86.7V | 8.33V | 77.8V |
| Voltage - Clamping (Max) @ Ipp | 121V | 126V | 12.9V | 113V |
| Current - Peak Pulse (10/1000µs) | 3.3A | 3.2A | 31A | 3.5A |
| Power - Peak Pulse | 400W | 400W | 400W | 400W |
| Power Line Protection | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead |
| Supplier Device Package | D-Flat | D-Flat | D-Flat | D-Flat |
