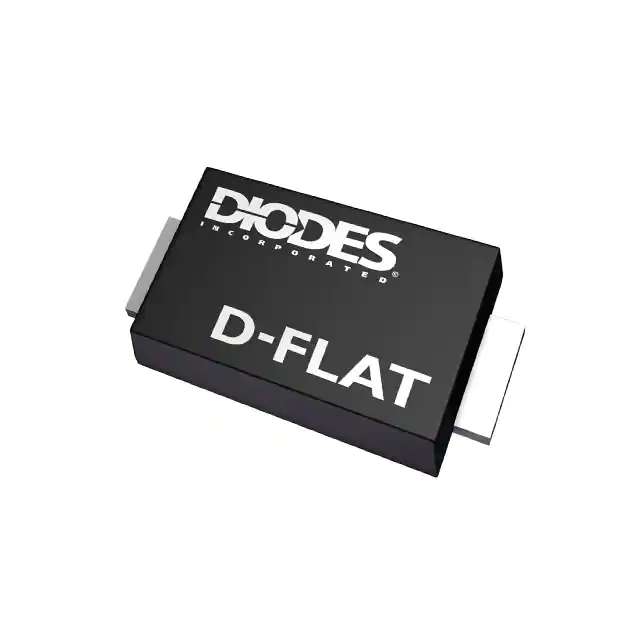

| Part Number | P4SMAJ20ADF-13 | P4SMAJ26ADF-13 | P4SMAJ24ADF-13 | P4SMAJ30ADF-13 | P4SMAJ22ADF-13 | P4SMAJ28ADF-13 |
|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 20V | 26V | 24V | 30V | 22V | 28V |
| Voltage - Breakdown (Min) | 22.2V | 28.9V | 26.7V | 33.3V | 24.4V | 31.1V |
| Voltage - Clamping (Max) @ Ipp | 32.4V | 42.1V | 38.9V | 48.4V | 35.5V | 45.4V |
| Current - Peak Pulse (10/1000µs) | 12.3A | 9.5A | 10.3A | 8.3A | 11.2A | 8.8A |
| Power - Peak Pulse | 400W | 400W | 400W | 400W | 400W | 400W |
| Power Line Protection | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead |
| Supplier Device Package | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat |
