| Part Number | P4SMAJ12ADF-13 | P4SMAJ15ADF-13 | P4SMAJ13ADF-13 | P4SMAJ16ADF-13 | P4SMAJ10ADF-13 |
|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 12V | 15V | 13V | 16V | 10V |
| Voltage - Breakdown (Min) | 13.3V | 16.7V | 14.4V | 17.8V | 11.1V |
| Voltage - Clamping (Max) @ Ipp | 19.9V | 24.4V | 21.5V | 26V | 17V |
| Current - Peak Pulse (10/1000µs) | 20.1A | 16.4A | 18.6A | 15.3A | 23.5A |
| Power - Peak Pulse | 400W | 400W | 400W | 400W | 400W |
| Power Line Protection | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead |

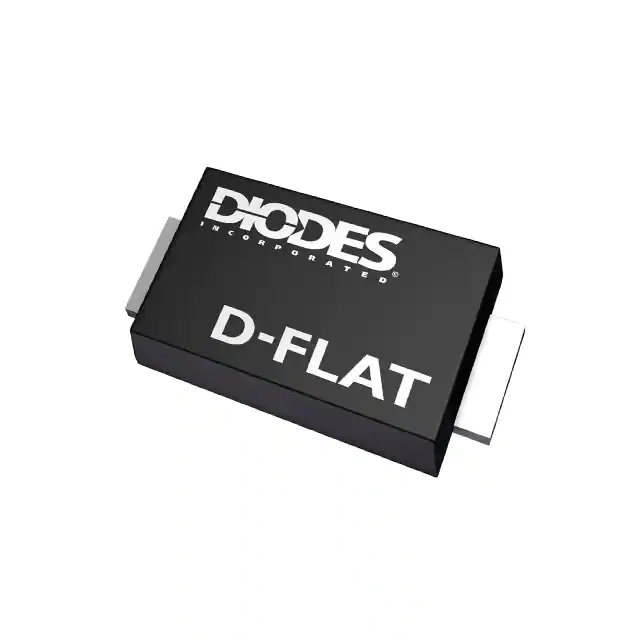

| Supplier Device Package | D-Flat | D-Flat | D-Flat | D-Flat | D-Flat |
