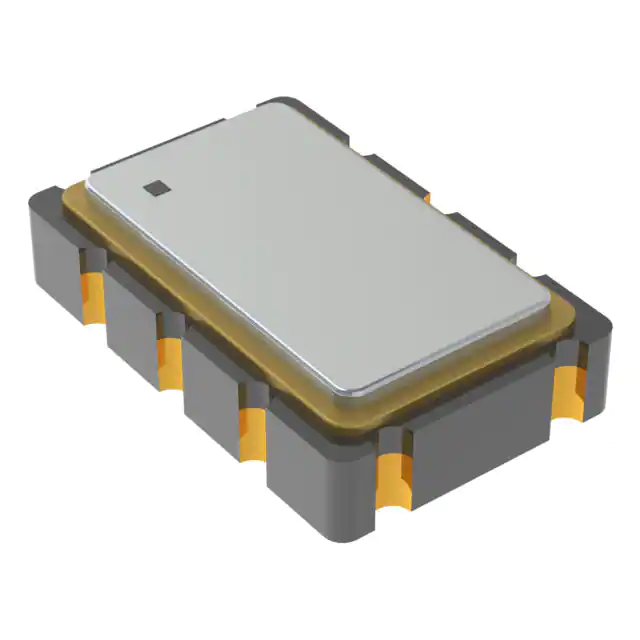

| Part Number | NX71C50001 | NX71C50003 | NX72C50001 | NX71C50004 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active |
| Base Resonator | Crystal | Crystal | Crystal | Crystal |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 125 MHz | 125 MHz | - | 125 MHz |
| Function | Enable/Disable | Enable/Disable | - | Enable/Disable |
| Output | LVCMOS | LVCMOS | - | HCMOS, LVCMOS |
| Voltage - Supply | 2.5V | 3.3V | - | 3.3V |
| Frequency Stability | ±20ppm | ±25ppm | - | ±25ppm |
| Absolute Pull Range (APR) | - | - | - | - |
| Operating Temperature | -20°C ~ 70°C | -40°C ~ 85°C | - | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - | - |
| Current - Supply (Max) | 60mA | 60mA | - | 60mA |
| Ratings | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | - | Surface Mount |
| Package / Case | 6-SMD, No Lead | 6-SMD, No Lead | - | 4-SMD, No Lead |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.061" (1.55mm) | 0.061" (1.55mm) | - | 0.071" (1.80mm) |
