Diodes Incorporated-MURS460C-13-F - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	600 V
Current - Average Rectified (Io):	4A
Voltage - Forward (Vf) (Max) @ If:	1.28 V @ 4 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	50 ns
Current - Reverse Leakage @ Vr:	10 µA @ 600 V
Capacitance @ Vr, F:	40pF @ 4V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	DO-214AB, SMC
Supplier Device Package:	SMC
Operating Temperature - Junction:	-55°C ~ 150°C

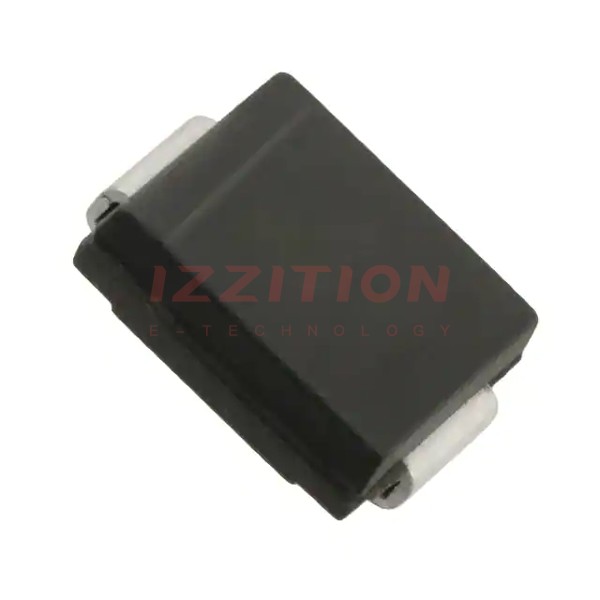

Diodes Incorporated MURS460C-13-F
