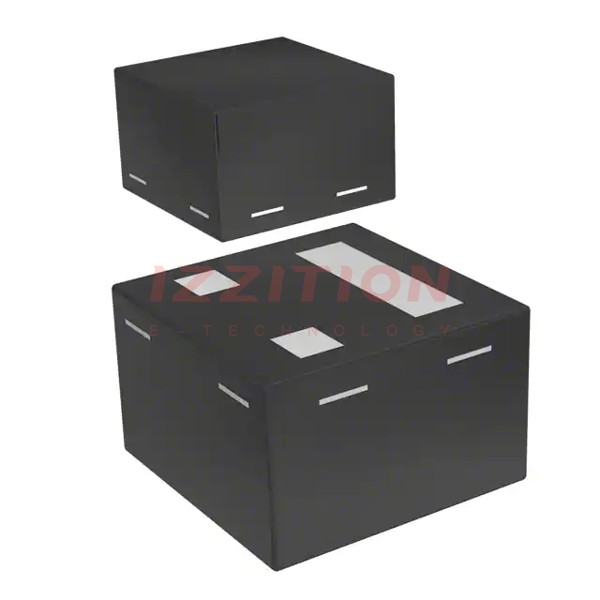

| Part Number | MMBT3906FZ-7B | MMBT3904FZ-7B | MMBT3906FA-7B |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| Transistor Type | PNP | NPN | PNP |
| Current - Collector (Ic) (Max) | 200 mA | 200 mA | 200 mA |
| Voltage - Collector Emitter Breakdown (Max) | 40 V | 40 V | 40 V |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 5mA, 50mA | 300mV @ 5mA, 50mA | 400mV @ 5mA, 50mA |
| Current - Collector Cutoff (Max) | 50nA (ICBO) | - | 50nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 1V | 100 @ 10mA, 10V | 100 @ 10mA, 1V |
| Power - Max | 435 mW | 435 mW | 435 mW |
| Frequency - Transition | 280MHz | 300MHz | 300MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 3-XFDFN | 3-XFDFN | 3-XFDFN |
| Supplier Device Package | X2-DFN0606-3 | X2-DFN0606-3 | X2-DFN0806-3 |
