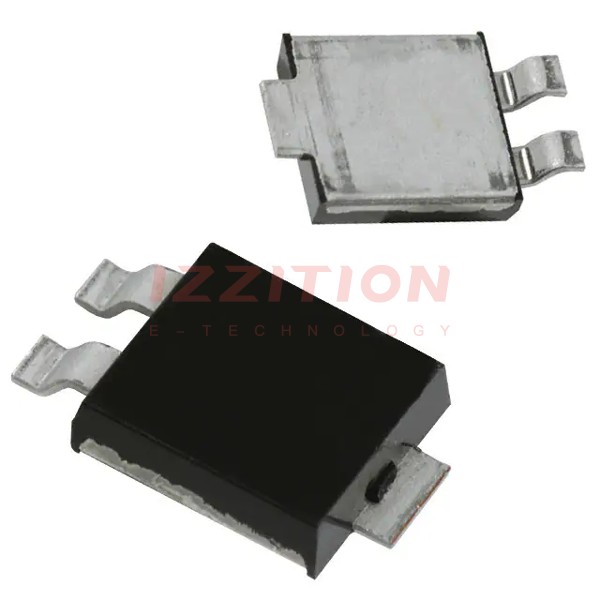

| Part Number | MBRM760-13-F | MBRM360-13-F | MBRM560-13-F |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V | 60 V | 60 V |
| Current - Average Rectified (Io) | 7A | 3A | 5A |
| Voltage - Forward (Vf) (Max) @ If | 600 mV @ 7 A | 630 mV @ 3 A | 690 mV @ 5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 200 µA @ 60 V | 200 µA @ 60 V | 200 µA @ 60 V |
| Capacitance @ Vr, F | 375pF @ 4V, 1MHz | 130pF @ 4V, 1MHz | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Powermite®3 | Powermite®3 | Powermite®3 |
| Supplier Device Package | Powermite 3 | Powermite 3 | Powermite 3 |
| Operating Temperature - Junction | -65°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
