Diodes Incorporated-MBRD1040CT-T - Diodes - Rectifiers - Arrays Product Specifications and Latest Quotes

Diode Configuration:	1 Pair Common Cathode
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	40 V
Current - Average Rectified (Io) (per Diode):	5A
Voltage - Forward (Vf) (Max) @ If:	480 mV @ 5 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	150 µA @ 35 V
Operating Temperature - Junction:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package:	TO-252, (D-Pak)

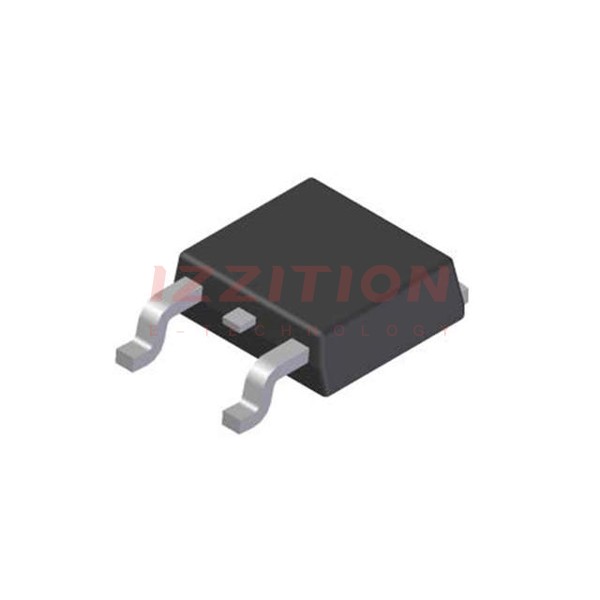

Diodes Incorporated MBRD1040CT-T
