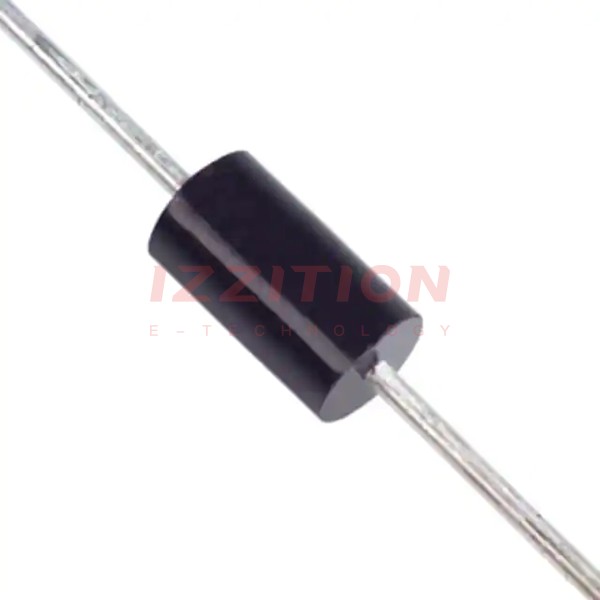

| Part Number | MBR5H150VPA-E1 | MBR5H150VPA-G1 | MBR5H150VPB-E1 | MBR5H150VPC-E1 | MBR5H150VP-E1 |
|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 150 V | 150 V | 150 V | 150 V | 150 V |
| Current - Average Rectified (Io) | 5A | 5A | 5A | 5A | 5A |
| Voltage - Forward (Vf) (Max) @ If | 920 mV @ 5 A | 920 mV @ 5 A | 920 mV @ 5 A | 920 mV @ 5 A | 920 mV @ 5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 8 µA @ 150 V | 8 µA @ 150 V | 8 µA @ 150 V | 8 µA @ 150 V | 8 µA @ 150 V |
| Capacitance @ Vr, F | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial |
| Supplier Device Package | DO-201 | DO-201 | DO-201 | DO-201 | DO-201 |
| Operating Temperature - Junction | 175°C (Max) | 175°C (Max) | 175°C (Max) | 175°C (Max) | 175°C (Max) |
