| Part Number | MBR3100VRTR-E1 | MBR3100VRTR-G1 | MBR3100VPTR-E1 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 100 V | 100 V |
| Current - Average Rectified (Io) | 3A | 3A | 3A |
| Voltage - Forward (Vf) (Max) @ If | 850 mV @ 3 A | 850 mV @ 3 A | 850 mV @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 500 µA @ 100 V | 500 µA @ 100 V | 500 µA @ 100 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Through Hole |

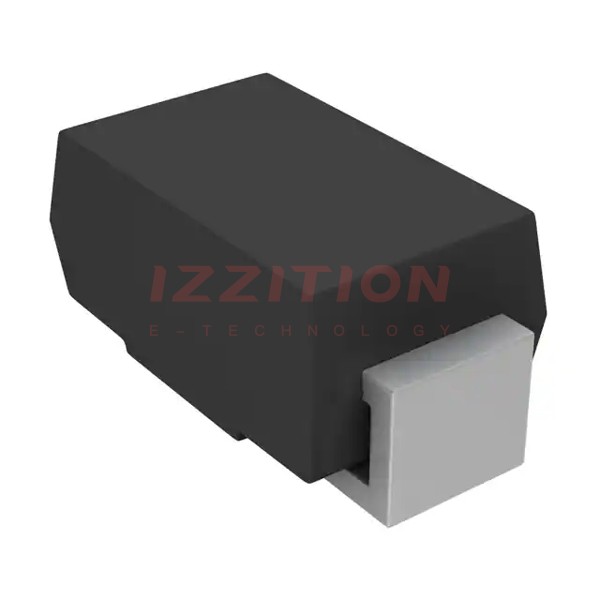

| Package / Case | DO-214AC, SMA | DO-214AC, SMA | DO-201AA, DO-27, Axial |
| Supplier Device Package | DO-214AC | DO-214AC | DO-201 |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
