Diodes Incorporated-MB354-F - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	MB354-F	MB356-F	MB154-F	MB254-F	MB351-F	MB352-F
Manufacturer	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
Product Status	Discontinued at Digi-Key	Discontinued at Digi-Key	Obsolete	Obsolete	Discontinued at Digi-Key	Discontinued at Digi-Key
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	400 V	600 V	400 V	400 V	100 V	200 V
Current - Average Rectified (Io)	35 A	35 A	15 A	25 A	35 A	35 A
Voltage - Forward (Vf) (Max) @ If	1.2 V @ 17.5 A	1.2 V @ 17.5 A	1.1 V @ 7.5 A	1.1 V @ 12.5 A	1.2 V @ 17.5 A	1.2 V @ 17.5 A
Current - Reverse Leakage @ Vr	10 µA @ 400 V	10 µA @ 600 V	10 µA @ 400 V	10 µA @ 400 V	10 µA @ 100 V	10 µA @ 100 V
Operating Temperature	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Mounting Type	QC Terminal	QC Terminal	QC Terminal	QC Terminal	QC Terminal	QC Terminal
Package / Case	4-Square, MB	4-Square, MB	4-Square, MB	4-Square, MB	4-Square, MB	4-Square, MB
Supplier Device Package	MB	MB	MB	MB	MB	MB

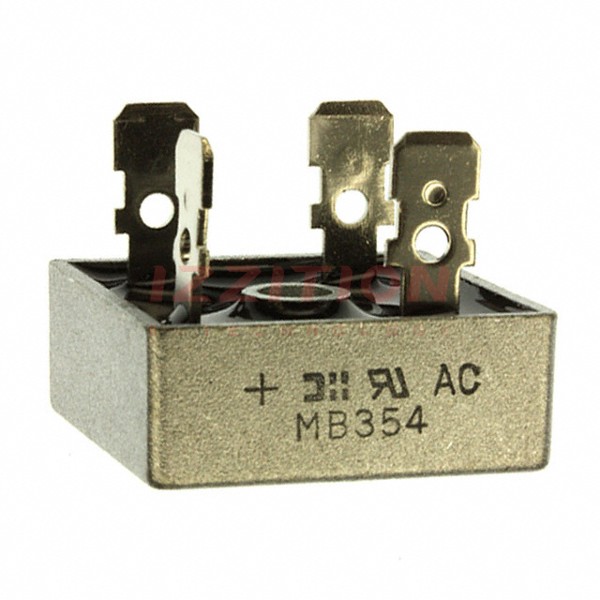

Diodes Incorporated MB354-F

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	400 V
Current - Average Rectified (Io):	35 A
Voltage - Forward (Vf) (Max) @ If:	1.2 V @ 17.5 A
Current - Reverse Leakage @ Vr:	10 µA @ 400 V
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	QC Terminal
Package / Case:	4-Square, MB
Supplier Device Package:	MB
