Diodes Incorporated-MB158 - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	MB158	MB158W	MB108	MB151	MB152	MB154	MB156
Manufacturer	Diodes Incorporated	Micro Commercial Co	Micro Commercial Co	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	800 V	800 V	800 V	100 V	200 V	400 V	600 V
Current - Average Rectified (Io)	15 A	15 A	10 A	15 A	15 A	15 A	15 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 7.5 A	1.2 V @ 7.5 A	1.1 V @ 5 A	1.1 V @ 7.5 A	1.1 V @ 7.5 A	1.1 V @ 7.5 A	1.1 V @ 7.5 A
Current - Reverse Leakage @ Vr	10 µA @ 800 V	10 µA @ 800 V	10 µA @ 800 V	10 µA @ 100 V	10 µA @ 200 V	10 µA @ 400 V	10 µA @ 600 V
Operating Temperature	-55°C ~ 150°C (TJ)	-55°C ~ 125°C (TJ)	-55°C ~ 125°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	QC Terminal	QC Terminal	QC Terminal	QC Terminal
Package / Case	4-Square, MB-W	4-Square, MB-35W	4-Square, BR-6	4-Square, MB	4-Square, MB	4-Square, MB	4-Square, MB
Supplier Device Package	MB-W	MB-35W	BR-6	MB	MB	MB	MB

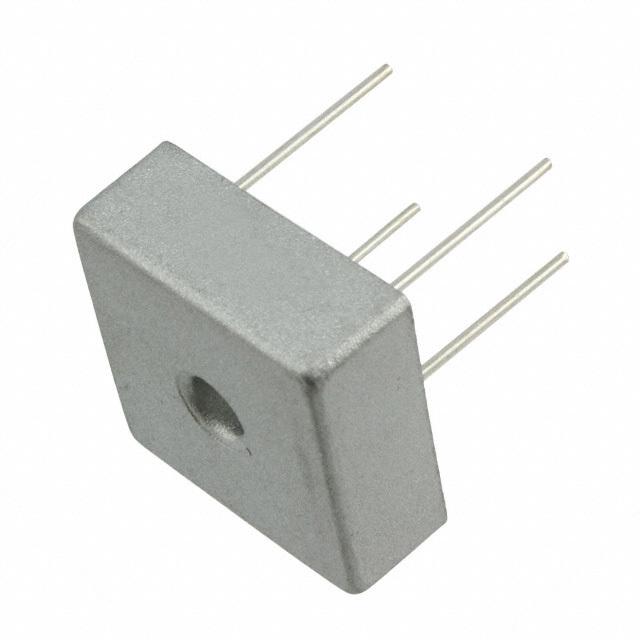

Diodes Incorporated MB158

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	800 V
Current - Average Rectified (Io):	15 A
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 7.5 A
Current - Reverse Leakage @ Vr:	10 µA @ 800 V
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	4-Square, MB-W
Supplier Device Package:	MB-W
