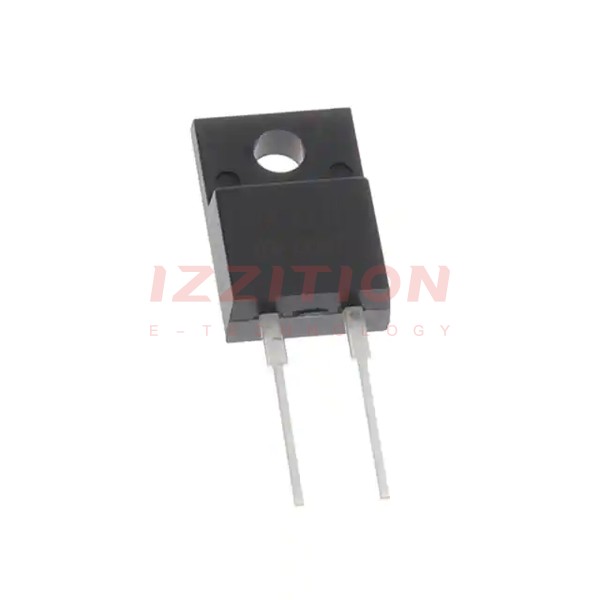

Diodes Incorporated-LSC02120FW - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max):	1200 V
Current - Average Rectified (Io):	2A
Voltage - Forward (Vf) (Max) @ If:	1.6 V @ 2 A
Speed:	No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr):	0 ns
Current - Reverse Leakage @ Vr:	128 µA @ 1200 V
Capacitance @ Vr, F:	105pF @ 1V, 1MHz
Mounting Type:	Through Hole
Package / Case:	TO-220-2 Full Pack, Isolated Tab
Supplier Device Package:	ITO-220AC (Type WX)
Operating Temperature - Junction:	-55°C ~ 175°C

Diodes Incorporated LSC02120FW
