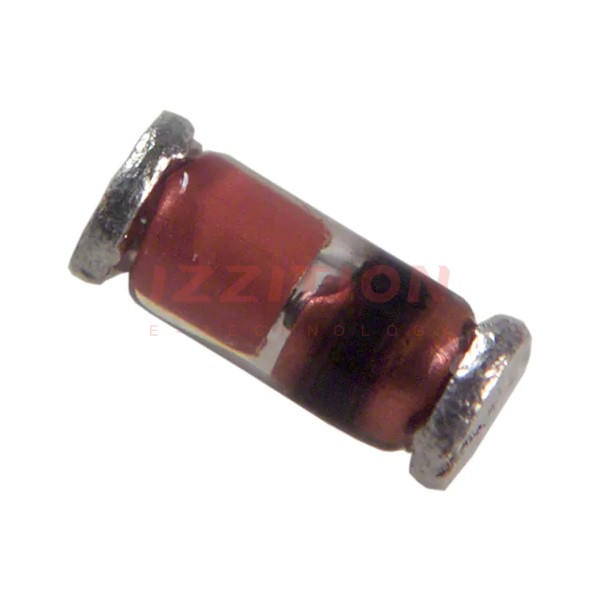

| Part Number | LL4148-13 | LL4148R13 | LL4448-13 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diotec Semiconductor | Vishay General Semiconductor - Diodes Division |
| Product Status | Obsolete | Active | Obsolete |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 75 V | 75 V | 75 V |
| Current - Average Rectified (Io) | 150mA | 150mA | 150mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 10 mA | 1 V @ 10 mA | 1 V @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns | 4 ns | 8 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 75 V | 5 µA @ 75 V | 5 µA @ 75 V |
| Capacitance @ Vr, F | - | 4pF @ 0V, 1MHz | 4pF @ 0V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 | DO-213AC, MINI-MELF, SOD-80 |
| Supplier Device Package | Mini MELF | SOD-80C | SOD-80 MiniMELF |
| Operating Temperature - Junction | -65°C ~ 175°C | -50°C ~ 175°C | 175°C (Max) |
