Diodes Incorporated-KBP201G - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	KBP201G	KBP206G	KBP202G	KBP204G	KBP208G	KBP301G	KBP401G	KBP203G	KBP01G
Manufacturer	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	SMC Diode Solutions	SMC Diode Solutions	GeneSiC Semiconductor	Diodes Incorporated
Product Status	Active	Active	Active	Active	Active	Active	Active	Obsolete	Active
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	100 V	600 V	200 V	400 V	800 V	100 V	100 V	200 V	100 V
Current - Average Rectified (Io)	2 A	2 A	2 A	2 A	2 A	3 A	4 A	2 A	1.5 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 2 A	1.1 V @ 2 A	1.1 V @ 2 A	1.1 V @ 2 A	1.1 V @ 2 A	1.1 V @ 3 A	1.1 V @ 4 A	1.1 V @ 2 A	1.1 V @ 1.5 A
Current - Reverse Leakage @ Vr	5 µA @ 100 V	5 µA @ 600 V	5 µA @ 200 V	5 µA @ 400 V	5 µA @ 800 V	5 µA @ 100 V	5 µA @ 100 V	10 µA @ 200 V	5 µA @ 100 V
Operating Temperature	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	4-SIP, KBP	4-SIP, KBP	4-SIP, KBP	4-SIP, KBP	4-SIP, KBP	4-ESIP	4-ESIP	4-SIP, KBP	4-SIP, KBP
Supplier Device Package	KBP	KBP	KBP	KBP	KBP	KBP	KBP	KBP	KBP

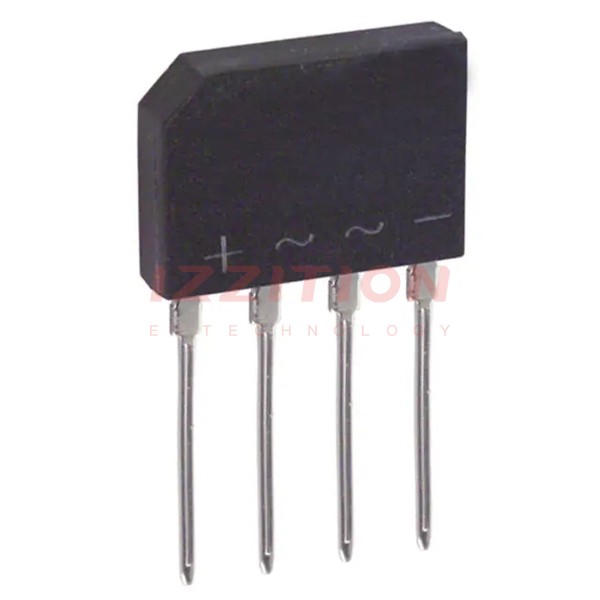

Diodes Incorporated KBP201G

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	100 V
Current - Average Rectified (Io):	2 A
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 2 A
Current - Reverse Leakage @ Vr:	5 µA @ 100 V
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	4-SIP, KBP
Supplier Device Package:	KBP
