Diodes Incorporated-KBP08G - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	KBP08G	KBP208G	KBP08M	KBP308G	KBP408G	KBP01G	KBP02G	KBP04G	KBP06G
Manufacturer	Diodes Incorporated	Diodes Incorporated	Fairchild Semiconductor	SMC Diode Solutions	SMC Diode Solutions	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
Product Status	Active	Active	Obsolete	Active	Active	Active	Active	Active	Active
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	800 V	800 V	800 V	800 V	800 V	100 V	200 V	400 V	600 V
Current - Average Rectified (Io)	1.5 A	2 A	1.5 A	3 A	4 A	1.5 A	1.5 A	1.5 A	1.5 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 1.5 A	1.1 V @ 2 A	1 V @ 1 A	1.1 V @ 3 A	1.1 V @ 4 A	1.1 V @ 1.5 A	1.1 V @ 1.5 A	1.1 V @ 1.5 A	1.1 V @ 1.5 A
Current - Reverse Leakage @ Vr	5 µA @ 800 V	5 µA @ 800 V	5 µA @ 800 V	5 µA @ 800 V	5 µA @ 800 V	5 µA @ 100 V	5 µA @ 200 V	5 µA @ 400 V	5 µA @ 600 V
Operating Temperature	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-55°C ~ 165°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	4-SIP, KBP	4-SIP, KBP	4-SIP, KBPM	4-ESIP	4-ESIP	4-SIP, KBP	4-SIP, KBP	4-SIP, KBP	4-SIP, KBP
Supplier Device Package	KBP	KBP	KBPM	KBP	KBP	KBP	KBP	KBP	KBP

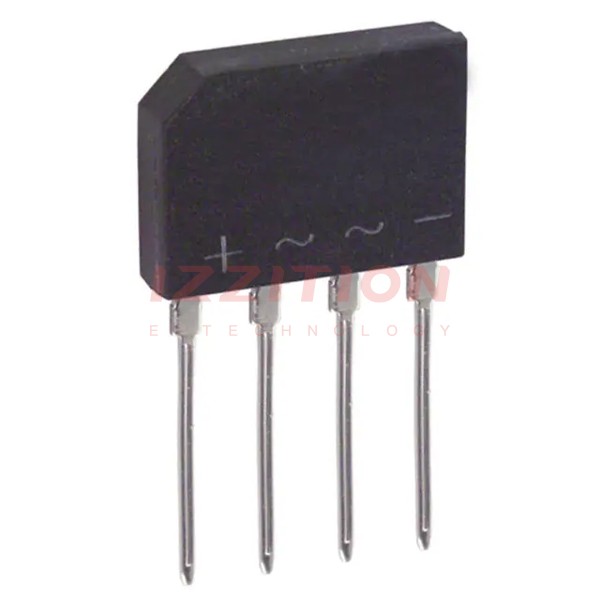

Diodes Incorporated KBP08G

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	800 V
Current - Average Rectified (Io):	1.5 A
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 1.5 A
Current - Reverse Leakage @ Vr:	5 µA @ 800 V
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	4-SIP, KBP
Supplier Device Package:	KBP
