Part Number	KBJ606G	KBJ608G	KBJ406G	KBJ601G	KBJ602G	KBJ604G
Manufacturer	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
Product Status	Active	Active	Active	Active	Obsolete	Active
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	600 V	800 V	600 V	100 V	200 V	400 V
Current - Average Rectified (Io)	6 A	6 A	4 A	6 A	6 A	6 A
Voltage - Forward (Vf) (Max) @ If	1 V @ 3 A	1 V @ 3 A	1 V @ 2 A	1 V @ 3 A	1 V @ 3 A	1 V @ 3 A
Current - Reverse Leakage @ Vr	5 µA @ 600 V	5 µA @ 800 V	5 µA @ 600 V	5 µA @ 100 V	5 µA @ 200 V	5 µA @ 400 V
Operating Temperature	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	4-SIP, KBJ	4-SIP, KBJ	4-SIP, KBJ	4-SIP, KBJ	4-SIP, KBJ	4-SIP, KBJ
Supplier Device Package	KBJ	KBJ	KBJ	KBJ	KBJ	KBJ

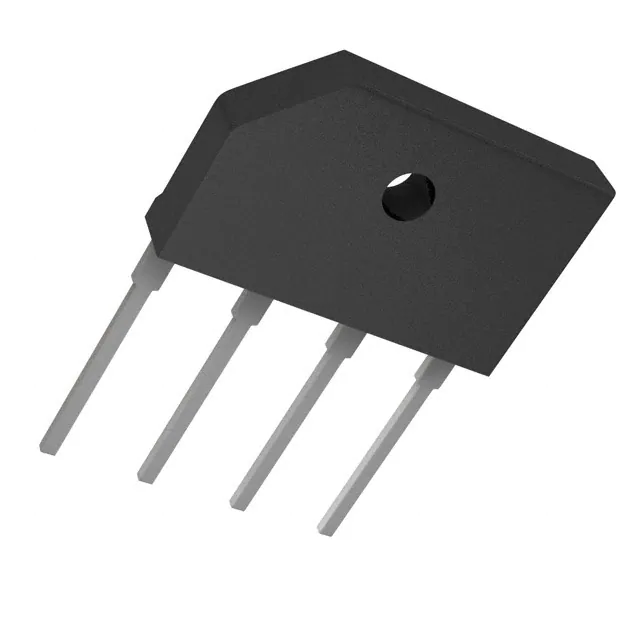

Diodes Incorporated KBJ606G

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	600 V
Current - Average Rectified (Io):	6 A
Voltage - Forward (Vf) (Max) @ If:	1 V @ 3 A
Current - Reverse Leakage @ Vr:	5 µA @ 600 V
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	4-SIP, KBJ
Supplier Device Package:	KBJ
