Diodes Incorporated-KBJ406G - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	KBJ406G	KBL406G	KBJ606G	KBJ402G	KBJ404G
Manufacturer	Diodes Incorporated	Taiwan Semiconductor Corporation	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
Product Status	Active	Active	Active	Active	Active
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	600 V	800 V	600 V	200 V	400 V
Current - Average Rectified (Io)	4 A	4 A	6 A	4 A	4 A
Voltage - Forward (Vf) (Max) @ If	1 V @ 2 A	1.1 V @ 4 A	1 V @ 3 A	1 V @ 2 A	1 V @ 2 A
Current - Reverse Leakage @ Vr	5 µA @ 600 V	10 µA @ 800 V	5 µA @ 600 V	5 µA @ 200 V	5 µA @ 400 V
Operating Temperature	-65°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	4-SIP, KBJ	4-SIP, KBL	4-SIP, KBJ	4-SIP, KBJ	4-SIP, KBJ
Supplier Device Package	KBJ	KBL	KBJ	KBJ	KBJ

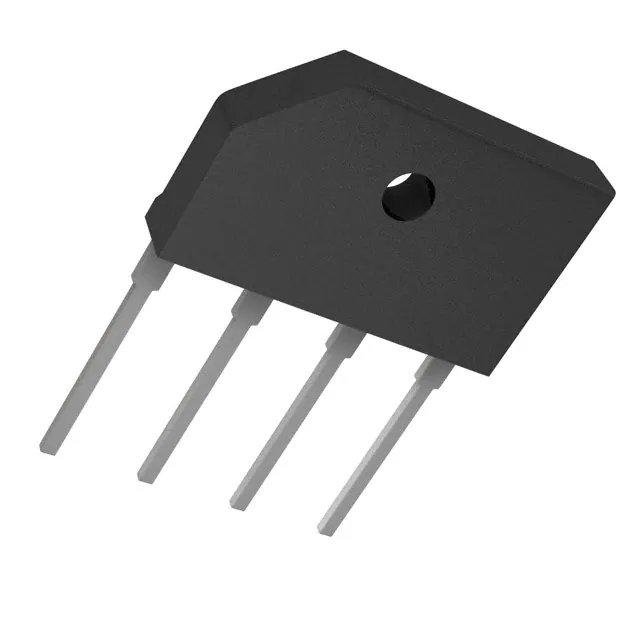

Diodes Incorporated KBJ406G

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	600 V
Current - Average Rectified (Io):	4 A
Voltage - Forward (Vf) (Max) @ If:	1 V @ 2 A
Current - Reverse Leakage @ Vr:	5 µA @ 600 V
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	4-SIP, KBJ
Supplier Device Package:	KBJ
