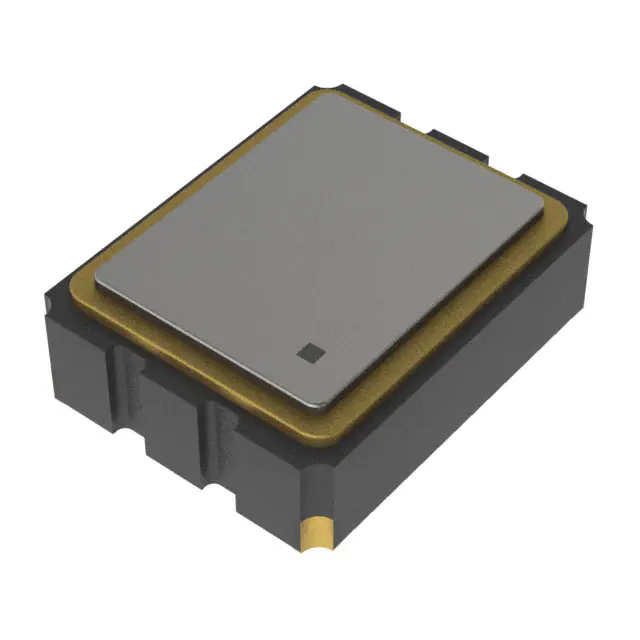

| Part Number | HX7011C0050.000000 | HX7011C0020.000000 |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| Base Resonator | Crystal | Crystal |
| Type | XO (Standard) | XO (Standard) |
| Frequency | 50 MHz | 20 MHz |
| Function | Enable/Disable | Enable/Disable |
| Output | CMOS | CMOS |
| Voltage - Supply | 3.3V | 3.3V |
| Frequency Stability | ±25ppm | ±25ppm |
| Absolute Pull Range (APR) | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Spread Spectrum Bandwidth | - | - |
| Current - Supply (Max) | 20mA | 20mA |
| Ratings | AEC-Q200 | AEC-Q200 |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.061" (1.55mm) | 0.061" (1.55mm) |
