Please send RFQ , we will respond immediately.

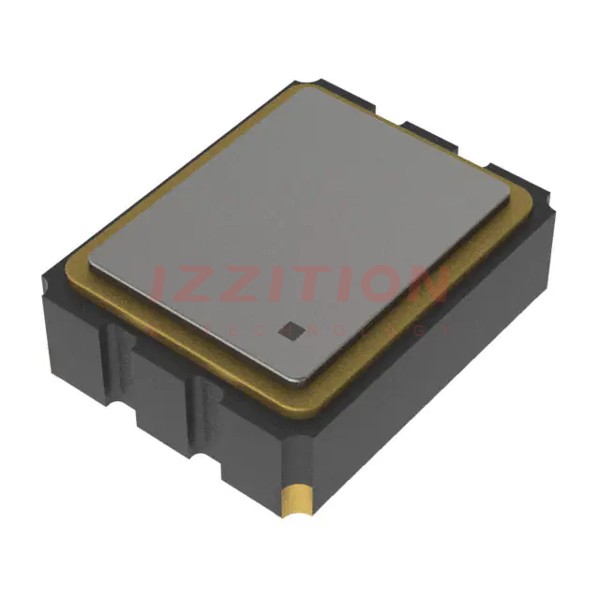

| Part Number | HX2127003Q | HX2127005Q | HX2127009Q | HX2124003Q | HX2126003Q | HX2127001Q | HX2127002Q |
|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Base Resonator | Crystal | Crystal | Crystal | Crystal | Crystal | Crystal | Crystal |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 27 MHz | 27 MHz | 27 MHz | 24 MHz | 26 MHz | 27 MHz | 27 MHz |
| Function | - | - | - | - | Enable/Disable | Enable/Disable | - |
| Output | CMOS | CMOS | CMOS | CMOS | CMOS | LVCMOS | CMOS |
| Voltage - Supply | 2.8V | 1.8V | 2.8V | 1.8V | 1.8V | 2.8V | 3.3V |
| Frequency Stability | - | - | - | - | ±100ppm | ±25ppm | - |
| Absolute Pull Range (APR) | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 125°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 125°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Spread Spectrum Bandwidth | - | - | - | - | - | - | - |
| Current - Supply (Max) | - | - | - | - | 20mA | 20mA | - |
| Ratings | - | - | - | - | AEC-Q200 | AEC-Q200 | - |
| Mounting Type | Surface Mount | Surface Mount | - | - | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | - | - | - | - | 4-SMD, No Lead | 4-SMD, No Lead | - |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | - | - | - | - | 0.039" (1.00mm) | 0.039" (1.00mm) | - |
