Diodes Incorporated-HS1DDF-13 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	200 V
Current - Average Rectified (Io):	1A
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 1 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	15 ns
Current - Reverse Leakage @ Vr:	5 µA @ 200 V
Capacitance @ Vr, F:	16pF @ 4V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	2-SMD, Flat Lead
Supplier Device Package:	D-Flat
Operating Temperature - Junction:	-55°C ~ 150°C

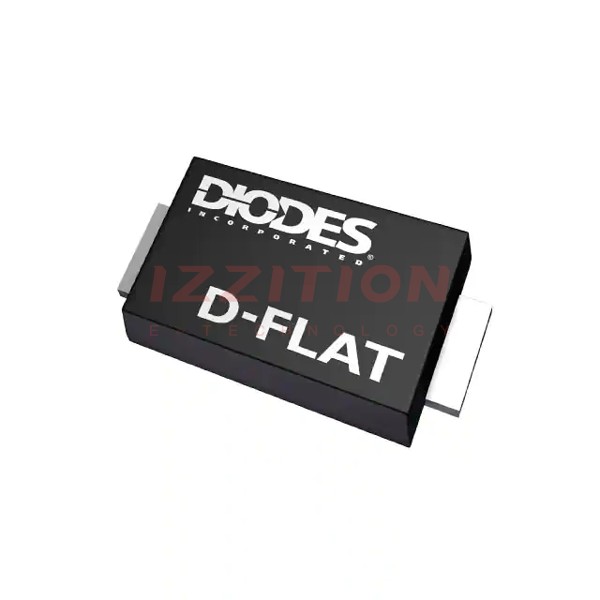

Diodes Incorporated HS1DDF-13
