Please send RFQ , we will respond immediately.

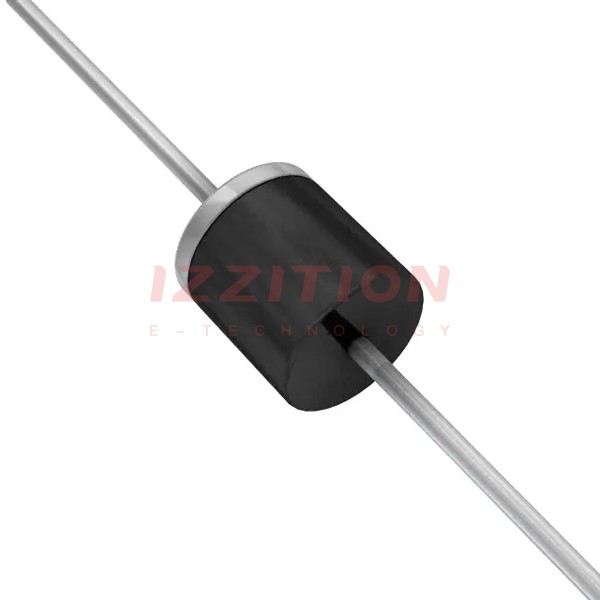

| Part Number | HER604-T | HER604-TP | HER304-T | HER601-T | HER602-T | HER603-T |
|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Micro Commercial Co | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 300 V | 300 V | 300 V | 50 V | 100 V | 200 V |
| Current - Average Rectified (Io) | 6A | 6A | 3A | 6A | 6A | 6A |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 6 A | - | 1.1 V @ 3 A | 1.2 V @ 6 A | 1.2 V @ 6 A | 1.2 V @ 6 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 60 ns | 50 ns | 50 ns | 60 ns | 60 ns | 60 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 300 V | - | 10 µA @ 300 V | 10 µA @ 50 V | 10 µA @ 100 V | 10 µA @ 200 V |
| Capacitance @ Vr, F | - | 100pF @ 4V, 1MHz | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | R-6, Axial | R-6, Axial | DO-201AD, Axial | R-6, Axial | R-6, Axial | R-6, Axial |
| Supplier Device Package | R-6 | R-6 | DO-201AD | R-6 | R-6 | R-6 |
| Operating Temperature - Junction | -65°C ~ 150°C | -55°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
