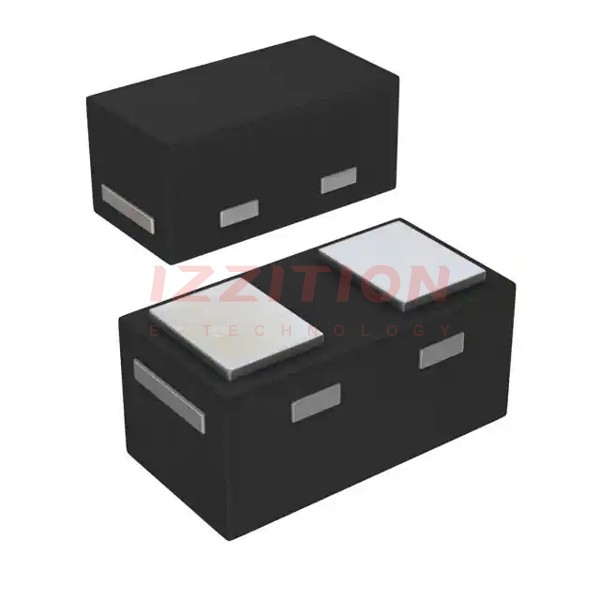

| Part Number | GDZ11LP3-7 | GDZ15LP3-7 | GDZ13LP3-7 | GDZ12LP3-7 | GDZ18LP3-7 | GDZ16LP3-7 | GDZ10LP3-7 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Active |
| Voltage - Zener (Nom) (Vz) | 11 V | 15 V | 13 V | 12 V | 18 V | 16 V | 10 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 250 mW | 250 mW | 250 mW | 250 mW | 250 mW | 250 mW | 250 mW |
| Impedance (Max) (Zzt) | - | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 100 nA @ 8 V | 100 nA @ 10.5 V | 100 nA @ 8 V | 100 nA @ 8 V | 100 nA @ 12.6 V | 100 nA @ 11.2 V | 200 nA @ 7 V |
| Voltage - Forward (Vf) (Max) @ If | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | X3-DFN0603-2 | X3-DFN0603-2 | X3-DFN0603-2 | X3-DFN0603-2 | X3-DFN0603-2 | X3-DFN0603-2 | X3-DFN0603-2 |
