Diodes Incorporated-GC2500164 - Crystals Product Specifications and Latest Quotes

Part Number	GC2500164	GC2500167	GC2500168	GC2500124	GC2500134	GC2500161	GC2500162
Manufacturer	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
Product Status	Active	Active	Active	Active	Active	Active	Active
Type	MHz Crystal	MHz Crystal	MHz Crystal	MHz Crystal	MHz Crystal	MHz Crystal	MHz Crystal
Frequency	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz	25.00145 MHz	25 MHz
Frequency Stability	±10ppm	±20ppm	±20ppm	-	±20ppm	±20ppm	±30ppm
Frequency Tolerance	±20ppm	±20ppm	±20ppm	-	±20ppm	±20ppm	±30ppm
Load Capacitance	18pF	10pF	10pF	-	12pF	10pF	20pF
ESR (Equivalent Series Resistance)	40 Ohms	20 Ohms	50 Ohms	30 Ohms	30 Ohms	20 Ohms	30 Ohms
Operating Mode	Fundamental	Fundamental	Fundamental	Fundamental	Fundamental	Fundamental	Fundamental
Operating Temperature	-20°C ~ 70°C	-40°C ~ 85°C	-40°C ~ 85°C	-	-20°C ~ 70°C	-40°C ~ 85°C	-20°C ~ 70°C
Ratings	-	-	-	-	-	-	-
Mounting Type	Surface Mount	-	-	Surface Mount	-	-	Surface Mount
Package / Case	HC-49/US	-	-	HC-49/US	-	-	HC-49/US
Size / Dimension	0.461" L x 0.189" W (11.70mm x 4.80mm)	-	-	0.453" L x 0.189" W (11.50mm x 4.80mm)	-	-	0.461" L x 0.189" W (11.70mm x 4.80mm)
Height - Seated (Max)	0.165" (4.20mm)	-	-	0.165" (4.20mm)	-	-	0.165" (4.20mm)

Type:	MHz Crystal
Frequency:	25 MHz
Frequency Stability:	±10ppm
Frequency Tolerance:	±20ppm
Load Capacitance:	18pF
ESR (Equivalent Series Resistance):	40 Ohms
Operating Mode:	Fundamental
Operating Temperature:	-20°C ~ 70°C
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	HC-49/US
Size / Dimension:	0.461" L x 0.189" W (11.70mm x 4.80mm)
Height - Seated (Max):	0.165" (4.20mm)

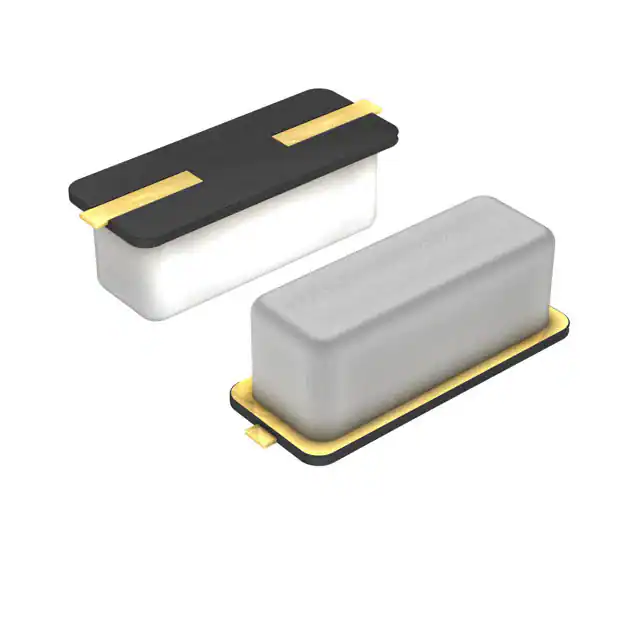

Diodes Incorporated GC2500164
