Please send RFQ , we will respond immediately.

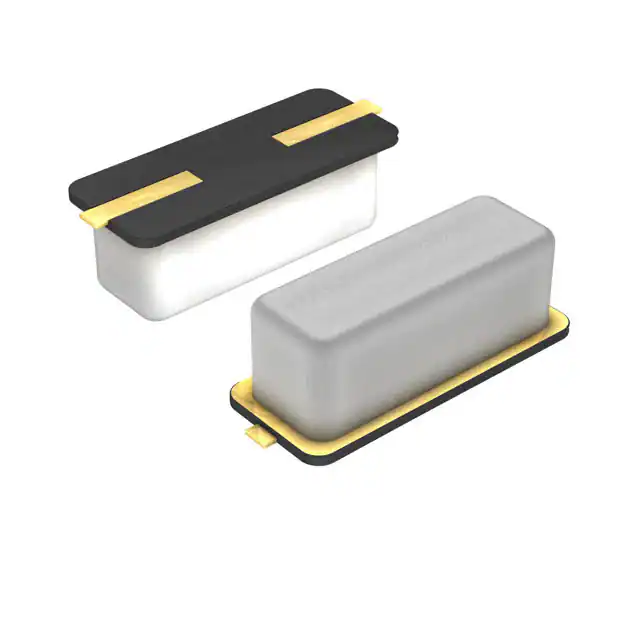

| Part Number | GC2500107 | GC2500117 | GC2500167 | GC2500177 | GC2500137 | GC2500007 | GC2500100 | GC2500103 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal |
| Frequency | 25 MHz | 25 MHz | 25 MHz | 25 MHz | 25.000625 MHz | - | 25 MHz | 25 MHz |
| Frequency Stability | ±25ppm | ±30ppm | ±20ppm | ±10ppm | ±20ppm | - | ±50ppm | ±20ppm |
| Frequency Tolerance | ±25ppm | ±30ppm | ±20ppm | ±10ppm | ±20ppm | - | ±30ppm | ±20ppm |
| Load Capacitance | 18pF | 20pF | 10pF | 18pF | 10pF | - | 16pF | 20pF |
| ESR (Equivalent Series Resistance) | 30 Ohms | 40 Ohms | 20 Ohms | 20 Ohms | 20 Ohms | - | 30 Ohms | 30 Ohms |
| Operating Mode | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental |
| Operating Temperature | -20°C ~ 70°C | -10°C ~ 60°C | -40°C ~ 85°C | -20°C ~ 85°C | -40°C ~ 85°C | - | -10°C ~ 60°C | -20°C ~ 70°C |
| Ratings | - | - | - | - | - | - | - | - |
| Mounting Type | - | - | - | - | - | - | Surface Mount | - |
| Package / Case | - | - | - | - | - | - | HC-49/US | - |
| Size / Dimension | - | - | - | - | - | - | 0.461" L x 0.189" W (11.70mm x 4.80mm) | - |
| Height - Seated (Max) | - | - | - | - | - | - | 0.165" (4.20mm) | - |
