Please send RFQ , we will respond immediately.

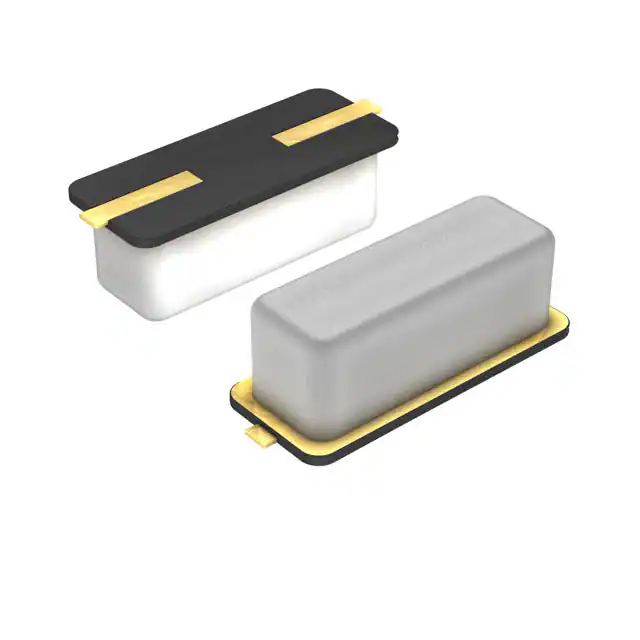

| Part Number | GC1200052 | GC1200054 | GC1200056 | GC1200042 | GC1200050 |
|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active |
| Type | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal |
| Frequency | 12 MHz | 12 MHz | 12 MHz | 12 MHz | 12 MHz |
| Frequency Stability | ±20ppm | ±50ppm | ±30ppm | ±30ppm | ±50ppm |
| Frequency Tolerance | ±20ppm | ±50ppm | ±20ppm | ±30ppm | ±30ppm |
| Load Capacitance | 18pF | 15pF | 18pF | 20pF | 16pF |
| ESR (Equivalent Series Resistance) | 60 Ohms | 60 Ohms | 60 Ohms | 60 Ohms | 60 Ohms |
| Operating Mode | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental |
| Operating Temperature | -40°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 70°C | -20°C ~ 70°C | -10°C ~ 60°C |
| Ratings | - | - | - | - | - |
| Mounting Type | Surface Mount | - | Surface Mount | - | Surface Mount |
| Package / Case | HC-49/US | - | HC-49/US | - | HC-49/US |
| Size / Dimension | 0.461" L x 0.189" W (11.70mm x 4.80mm) | - | 0.461" L x 0.189" W (11.70mm x 4.80mm) | - | 0.461" L x 0.189" W (11.70mm x 4.80mm) |
| Height - Seated (Max) | 0.165" (4.20mm) | - | 0.165" (4.20mm) | - | 0.165" (4.20mm) |
