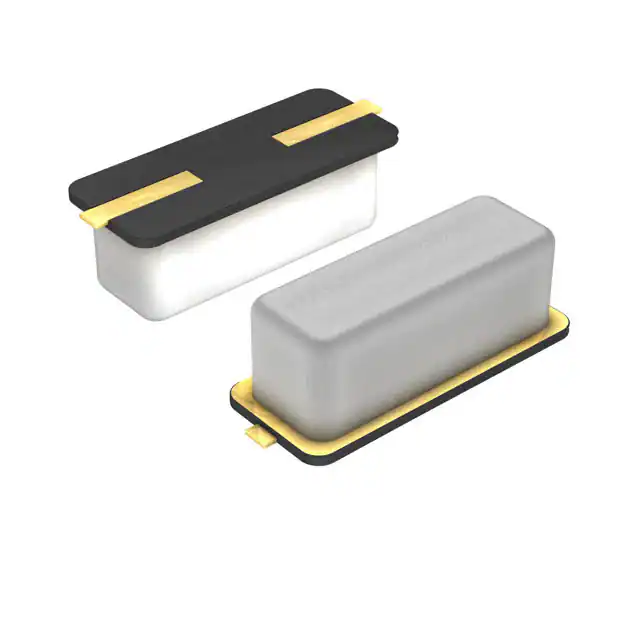

Diodes Incorporated-GC0800053 - Crystals Product Specifications and Latest Quotes

Part Number	GC0800053	GC0800055	GC0800059	GC0800056	GC0800003	GC0800013	GC0800050
Manufacturer	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
Product Status	Active	Active	Active	Active	Active	Active	Active
Type	MHz Crystal	MHz Crystal	MHz Crystal	MHz Crystal	MHz Crystal	MHz Crystal	MHz Crystal
Frequency	8 MHz	8 MHz	8 MHz	-	-	-	8 MHz
Frequency Stability	±50ppm	±30ppm	±30ppm	-	-	-	±50ppm
Frequency Tolerance	±50ppm	±30ppm	±20ppm	-	-	-	±30ppm
Load Capacitance	18pF	20pF	20pF	-	-	-	12pF
ESR (Equivalent Series Resistance)	80 Ohms	80 Ohms	80 Ohms	-	-	-	80 Ohms
Operating Mode	Fundamental	Fundamental	Fundamental	Fundamental	Fundamental	Fundamental	Fundamental
Operating Temperature	-20°C ~ 70°C	-40°C ~ 85°C	-40°C ~ 85°C	-	-	-	-40°C ~ 85°C
Ratings	-	-	-	-	-	-	-
Mounting Type	Surface Mount	-	-	-	-	-	-
Package / Case	HC-49/US	-	-	-	-	-	-
Size / Dimension	0.461" L x 0.189" W (11.70mm x 4.80mm)	-	-	-	-	-	-
Height - Seated (Max)	0.165" (4.20mm)	-	-	-	-	-	-

Type:	MHz Crystal
Frequency:	8 MHz
Frequency Stability:	±50ppm
Frequency Tolerance:	±50ppm
Load Capacitance:	18pF
ESR (Equivalent Series Resistance):	80 Ohms
Operating Mode:	Fundamental
Operating Temperature:	-20°C ~ 70°C
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	HC-49/US
Size / Dimension:	0.461" L x 0.189" W (11.70mm x 4.80mm)
Height - Seated (Max):	0.165" (4.20mm)

Diodes Incorporated GC0800053
