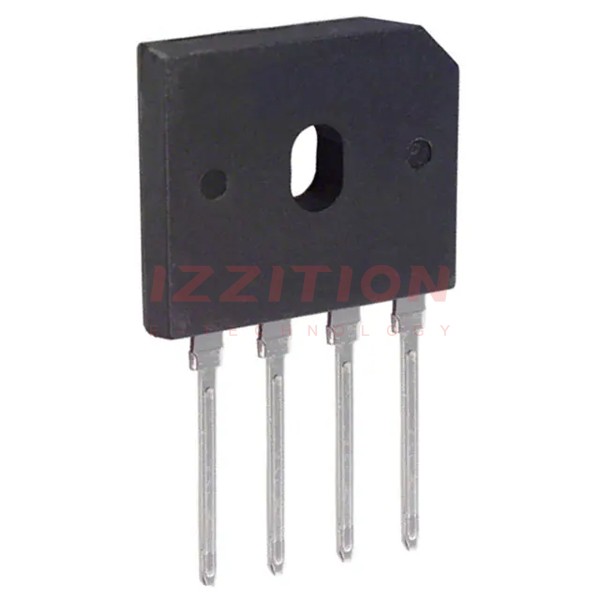

| Part Number | GBU606 | GBU806 | GBU607 | GBU608 | GBU606G | GBU406 | GBU601 | GBU602 | GBU604 | GBU605 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Taiwan Semiconductor Corporation | Diodes Incorporated | SMC Diode Solutions | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Taiwan Semiconductor Corporation |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Diode Type | Single Phase | Single Phase | Single Phase | Single Phase | Single Phase | Single Phase | Single Phase | Single Phase | Single Phase | Single Phase |
| Technology | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - Peak Reverse (Max) | 600 V | 600 V | 1 kV | 800 V | 600 V | 600 V | 100 V | 200 V | 400 V | 600 V |
| Current - Average Rectified (Io) | 6 A | 8 A | 6 A | 6 A | 6 A | 4 A | 6 A | 6 A | 6 A | 6 A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 3 A | 1 V @ 4 A | 1 V @ 1.5 A | 1 V @ 3 A | 1.1 V @ 6 A | 1 V @ 2 A | 1 V @ 3 A | 1 V @ 3 A | 1 V @ 3 A | 1 V @ 2 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V | 5 µA @ 400 V | 5 µA @ 1000 V | 5 µA @ 800 V | 5 µA @ 600 V | 5 µA @ 600 V | 5 µA @ 100 V | 5 µA @ 200 V | 5 µA @ 400 V | 5 µA @ 600 V |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 4-SIP, GBU | 4-SIP, GBU | 4-SIP, GBU | 4-SIP, GBU | 4-ESIP | 4-SIP, GBU | 4-SIP, GBU | 4-SIP, GBU | 4-SIP, GBU | 4-SIP, GBU |
| Supplier Device Package | GBU | GBU | GBU | GBU | GBU | GBU | GBU | GBU | GBU | GBU |
