Diodes Incorporated-GBU1006 - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	GBU1006	GBU1007	GBU1506	GBU1008	GBU1001	GBU1002	GBU1004	GBU1005
Manufacturer	Diodes Incorporated	Taiwan Semiconductor Corporation	Taiwan Semiconductor Corporation	SMC Diode Solutions	Diodes Incorporated	SMC Diode Solutions	Diodes Incorporated	Taiwan Semiconductor Corporation
Product Status	Active	Active	Active	Active	Active	Active	Active	Discontinued at Digi-Key
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	600 V	1 kV	800 V	800 V	100 V	200 V	400 V	600 V
Current - Average Rectified (Io)	10 A	10 A	15 A	10 A	10 A	10 A	10 A	10 A
Voltage - Forward (Vf) (Max) @ If	1 V @ 5 A	1.1 V @ 1.5 A	1.1 V @ 15 A	1.1 V @ 10 A	1 V @ 5 A	1.1 V @ 10 A	1 V @ 5 A	1.1 V @ 10 A
Current - Reverse Leakage @ Vr	5 µA @ 600 V	5 µA @ 1000 V	5 µA @ 800 V	5 µA @ 800 V	5 µA @ 100 V	5 µA @ 200 V	5 µA @ 400 V	5 µA @ 600 V
Operating Temperature	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	4-SIP, GBU	4-SIP, GBU	4-ESIP, GBU	4-ESIP	4-SIP, GBU	4-ESIP	4-SIP, GBU	4-SIP, GBU
Supplier Device Package	GBU	GBU	GBU	GBU	GBU	GBU	GBU	GBU

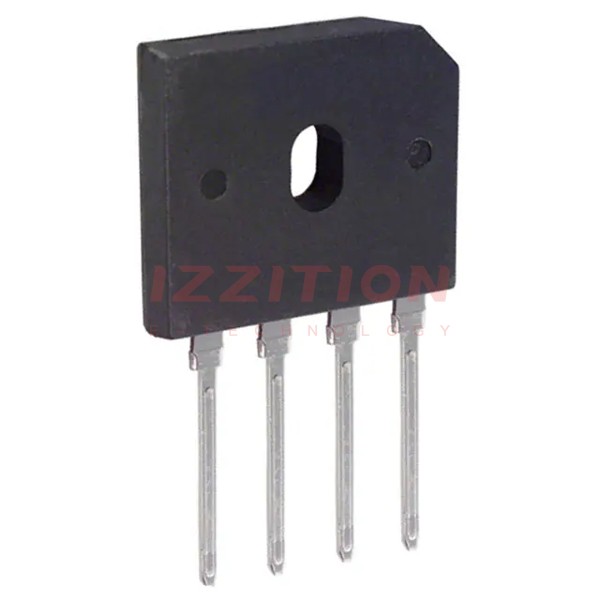

Diodes Incorporated GBU1006

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	600 V
Current - Average Rectified (Io):	10 A
Voltage - Forward (Vf) (Max) @ If:	1 V @ 5 A
Current - Reverse Leakage @ Vr:	5 µA @ 600 V
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	4-SIP, GBU
Supplier Device Package:	GBU
