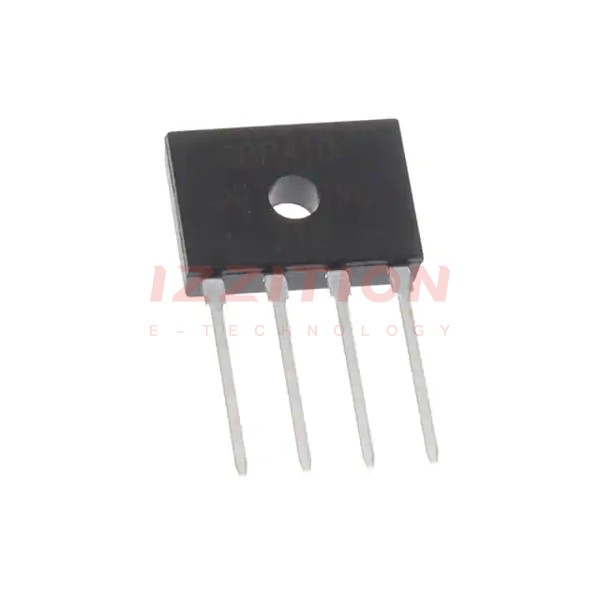

| Part Number | GBP308 | GBP408 | GBP208 | GBP306 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active |
| Diode Type | Single Phase | Single Phase | Single Phase | Single Phase |
| Technology | Standard | Standard | Standard | Standard |
| Voltage - Peak Reverse (Max) | 800 V | 800 V | 800 V | 600 V |
| Current - Average Rectified (Io) | 3 A | 4 A | 2 A | 3 A |
| Voltage - Forward (Vf) (Max) @ If | 1.05 V @ 1.5 A | 1 V @ 2 A | 1.05 V @ 1 A | 1.05 V @ 1.5 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 800 V | 5 µA @ 800 V | 5 µA @ 800 V | 5 µA @ 600 V |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 4-SIP, GBP | 4-SIP, GBP | 4-SIP, GBP | 4-SIP, GBP |
| Supplier Device Package | GBP | GBP | GBP | GBP |
