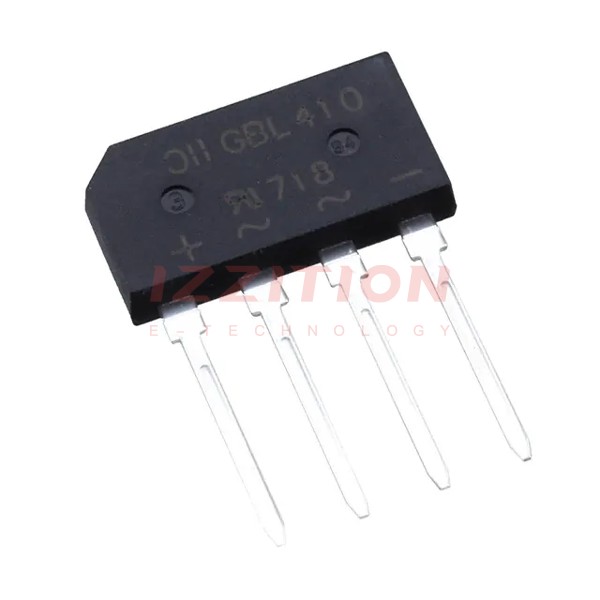

| Part Number | GBL410 | GBP410 | GBLA10 | GBL10 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| Product Status | Active | Active | Discontinued at Digi-Key | Active |
| Diode Type | Single Phase | Single Phase | Single Phase | Single Phase |
| Technology | Standard | Standard | Standard | Standard |
| Voltage - Peak Reverse (Max) | 1 kV | 1 kV | 1 kV | 1 kV |
| Current - Average Rectified (Io) | 4 A | 4 A | 4 A | 4 A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 2 A | 1 V @ 2 A | 1 V @ 4 A | 1.1 V @ 4 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V | 5 µA @ 1000 V | 5 µA @ 1000 V | 5 µA @ 1000 V |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 4-SIP, GBL | 4-SIP, GBP | 4-SIP, GBL | 4-SIP, GBL |
| Supplier Device Package | GBL | GBP | GBL | GBL |
