Please send RFQ , we will respond immediately.

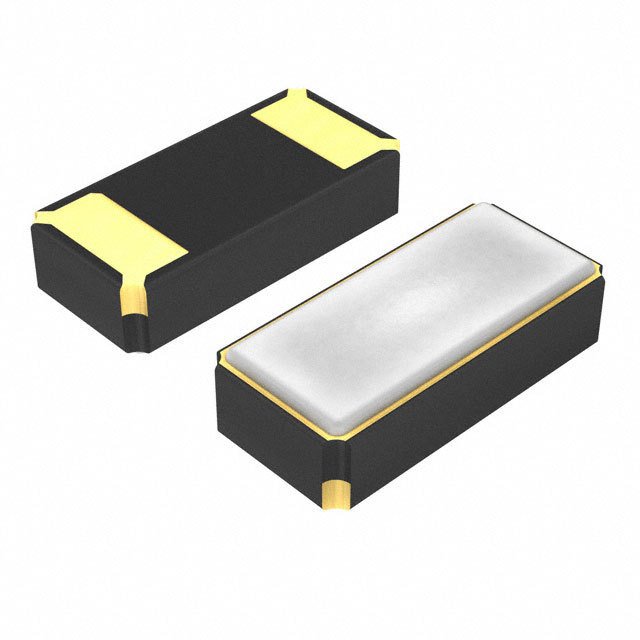

| Part Number | G83270022 | G83270025 | G83270023 | G83270028 | G83270024 | G83270042 | G83270012 | G83270021 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | kHz Crystal (Tuning Fork) | kHz Crystal (Tuning Fork) | kHz Crystal (Tuning Fork) | - | - | - | - | kHz Crystal (Tuning Fork) |
| Frequency | 32.768 kHz | 32.768 kHz | 32.768 kHz | - | - | - | - | 32.768 kHz |
| Frequency Stability | - | - | - | - | - | - | - | - |
| Frequency Tolerance | ±10ppm | ±20ppm | ±20ppm | - | - | - | - | ±20ppm |
| Load Capacitance | 12.5pF | 9pF | 7pF | - | - | - | - | 12.5pF |
| ESR (Equivalent Series Resistance) | 70 kOhms | 70 kOhms | 70 kOhms | - | - | - | - | 70 kOhms |
| Operating Mode | Fundamental | Fundamental | Fundamental | - | - | - | - | Fundamental |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | - | - | - | - | -40°C ~ 85°C |
| Ratings | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | - | - | - | - | Surface Mount |
| Package / Case | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | - | - | - | - | 2-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.126" L x 0.059" W (3.20mm x 1.50mm) | - | - | - | - | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Height - Seated (Max) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | - | - | - | - | 0.031" (0.80mm) |
