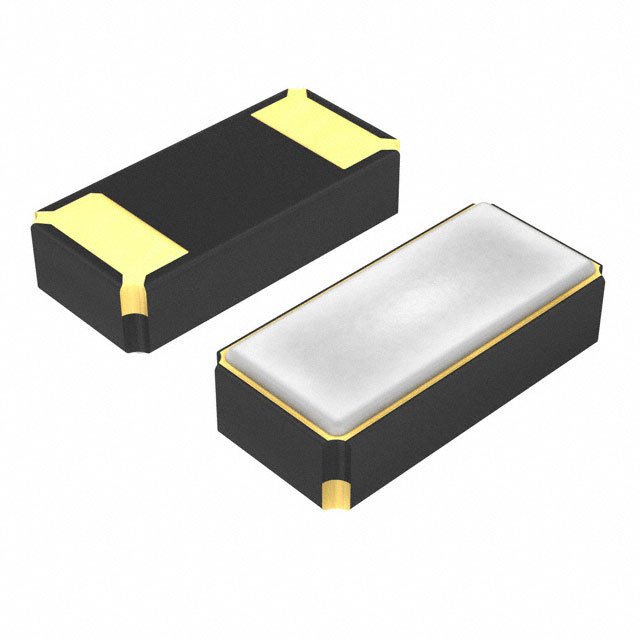

| Part Number | G83270021 | G83270022 | G83270025 | G83270023 | G83270028 | G83270024 | G83270031 | G43270021 | G83270001 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active | Obsolete |
| Type | kHz Crystal (Tuning Fork) | kHz Crystal (Tuning Fork) | kHz Crystal (Tuning Fork) | kHz Crystal (Tuning Fork) | - | - | - | kHz Crystal (Tuning Fork) | - |
| Frequency | 32.768 kHz | 32.768 kHz | 32.768 kHz | 32.768 kHz | - | - | - | 32.768 kHz | - |
| Frequency Stability | - | - | - | - | - | - | - | - | - |
| Frequency Tolerance | ±20ppm | ±10ppm | ±20ppm | ±20ppm | - | - | - | ±20ppm | - |
| Load Capacitance | 12.5pF | 12.5pF | 9pF | 7pF | - | - | - | 12.5pF | - |
| ESR (Equivalent Series Resistance) | 70 kOhms | 70 kOhms | 70 kOhms | 70 kOhms | - | - | - | 50 kOhms | - |
| Operating Mode | Fundamental | Fundamental | Fundamental | Fundamental | - | - | - | Fundamental | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | - | - | - | -40°C ~ 85°C | - |
| Ratings | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - | - | - | Surface Mount | - |
| Package / Case | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | - | - | - | 4-SOJ, 5.50mm pitch | - |
| Size / Dimension | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.126" L x 0.059" W (3.20mm x 1.50mm) | - | - | - | 0.311" L x 0.150" W (7.90mm x 3.80mm) | - |
| Height - Seated (Max) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | - | - | - | 0.102" (2.60mm) | - |
