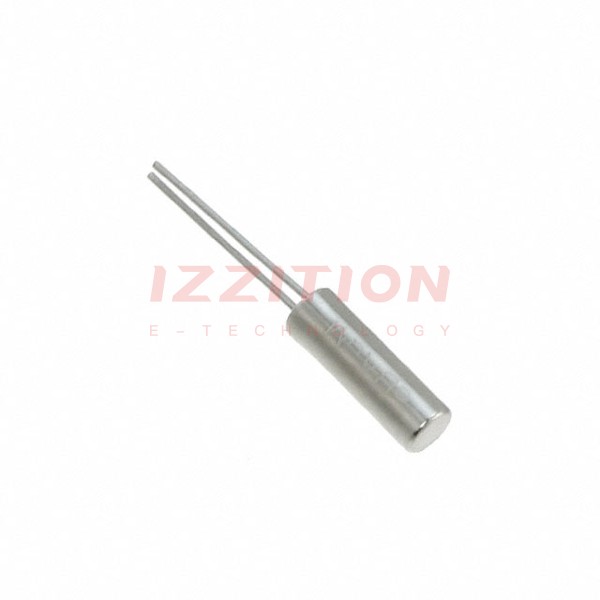

| Part Number | G23270023 | G83270023 | G23270013 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Obsolete | Active |
| Type | kHz Crystal (Tuning Fork) | kHz Crystal (Tuning Fork) | kHz Crystal (Tuning Fork) |
| Frequency | 32.768 kHz | 32.768 kHz | 32.768 kHz |
| Frequency Stability | - | - | - |
| Frequency Tolerance | ±20ppm | ±20ppm | ±20ppm |
| Load Capacitance | 12.5pF | 7pF | 12.5pF |
| ESR (Equivalent Series Resistance) | 35 kOhms | 70 kOhms | 50 kOhms |
| Operating Mode | Fundamental | Fundamental | Fundamental |
| Operating Temperature | -10°C ~ 60°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - |
| Mounting Type | Through Hole | Surface Mount | Through Hole |
| Package / Case | Cylindrical Can, Radial | 2-SMD, No Lead | Cylindrical Can, Radial |
| Size / Dimension | 0.079" Dia x 0.236" L (2.00mm x 6.00mm) | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.079" Dia x 0.236" L (2.00mm x 6.00mm) |
| Height - Seated (Max) | 0.244" (6.20mm) | 0.031" (0.80mm) | 0.244" (6.20mm) |
