Diodes Incorporated-FRS1ME - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	1000 V
Current - Average Rectified (Io):	1A
Voltage - Forward (Vf) (Max) @ If:	1.3 V @ 1 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	500 ns
Current - Reverse Leakage @ Vr:	5 µA @ 1000 V
Capacitance @ Vr, F:	5pF @ 4V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	DO-219AA
Supplier Device Package:	DO-219AA
Operating Temperature - Junction:	-55°C ~ 150°C

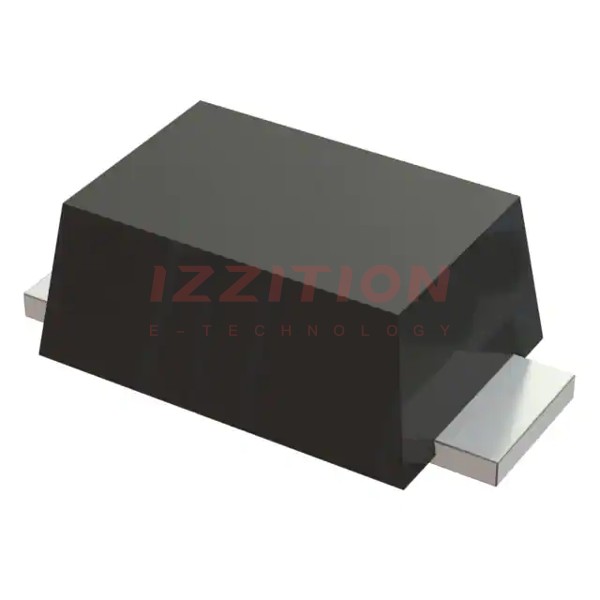

Diodes Incorporated FRS1ME
