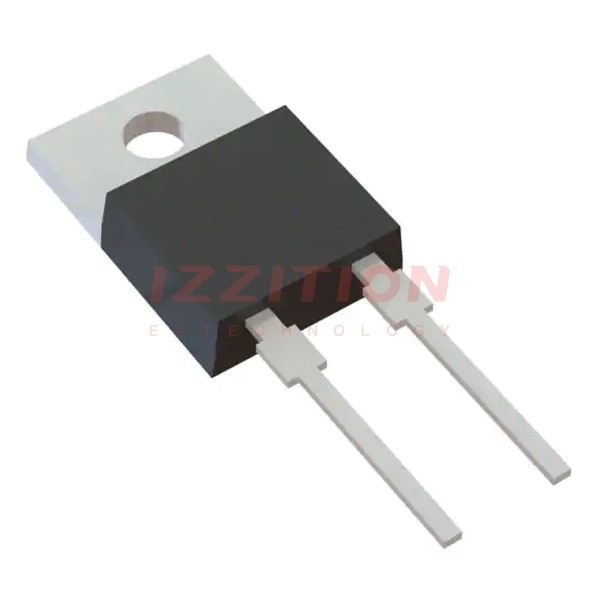

Diodes Incorporated-FR802 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Part Number	FR802	FR803	FR804	FR805	FR602	FR801
Manufacturer	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	SMC Diode Solutions	Diodes Incorporated
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Diode Type	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - DC Reverse (Vr) (Max)	100 V	200 V	400 V	600 V	100 V	50 V
Current - Average Rectified (Io)	8A	8A	8A	8A	6A	8A
Voltage - Forward (Vf) (Max) @ If	1.3 V @ 8 A	1.3 V @ 8 A	1.3 V @ 8 A	1.3 V @ 8 A	1.2 V @ 6 A	1.3 V @ 8 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	150 ns	150 ns	150 ns	250 ns	150 ns	150 ns
Current - Reverse Leakage @ Vr	10 µA @ 100 V	10 µA @ 200 V	10 µA @ 400 V	10 µA @ 600 V	10 µA @ 100 V	10 µA @ 50 V
Capacitance @ Vr, F	-	-	-	-	100pF @ 4V, 1MHz	-
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	TO-220-2	TO-220-2	TO-220-2	TO-220-2	R-6, Axial	TO-220-2
Supplier Device Package	TO-220AC	TO-220AC	TO-220AC	TO-220AC	R-6	TO-220AC
Operating Temperature - Junction	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 125°C	-65°C ~ 175°C

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	100 V
Current - Average Rectified (Io):	8A
Voltage - Forward (Vf) (Max) @ If:	1.3 V @ 8 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	150 ns
Current - Reverse Leakage @ Vr:	10 µA @ 100 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	TO-220-2
Supplier Device Package:	TO-220AC
Operating Temperature - Junction:	-65°C ~ 175°C

Diodes Incorporated FR802
