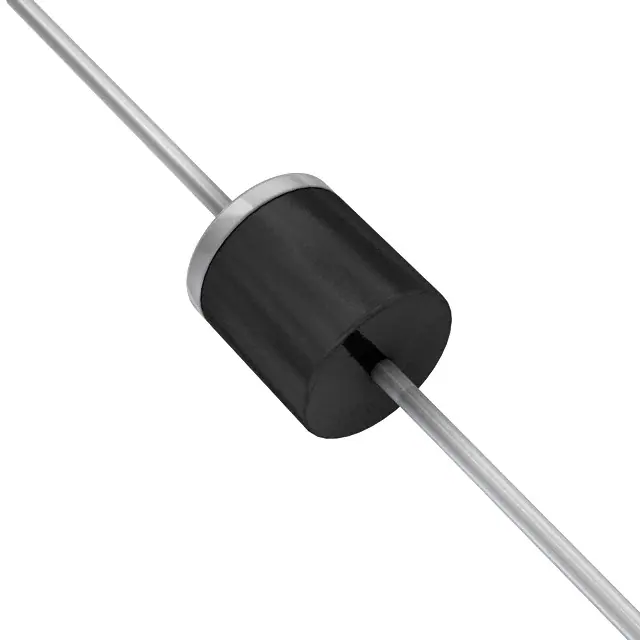

| Part Number | FR602-T | FR605-T | FR603-T | FR604-T | FR606-T | FR602-TP | FR601-T |
|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Rectron USA | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Micro Commercial Co | Diodes Incorporated |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 600 V | 200 V | 400 V | 800 V | 100 V | 50 V |
| Current - Average Rectified (Io) | 6A | 6A | 6A | 6A | 6A | 6A | 6A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 6 A | 1.3 V @ 6 A | 1.3 V @ 6 A | 1.3 V @ 6 A | 1.3 V @ 6 A | - | 1.3 V @ 6 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 150 ns | 250 ns | 150 ns | 150 ns | 500 ns | 150 ns | 150 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 100 V | 10 µA @ 600 V | 10 µA @ 200 V | 10 µA @ 400 V | 10 µA @ 800 V | - | 10 µA @ 50 V |
| Capacitance @ Vr, F | - | 150pF @ 4V, 1MHz | - | - | - | 150pF @ 4V, 1MHz | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | R-6, Axial | R-6, Axial | R-6, Axial | R-6, Axial | R-6, Axial | R-6, Axial | R-6, Axial |
| Supplier Device Package | R-6 | R-6 | R-6 | R-6 | R-6 | R-6 | R-6 |
| Operating Temperature - Junction | -65°C ~ 175°C | -55°C ~ 150°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -55°C ~ 150°C | -65°C ~ 175°C |
