Please send RFQ , we will respond immediately.

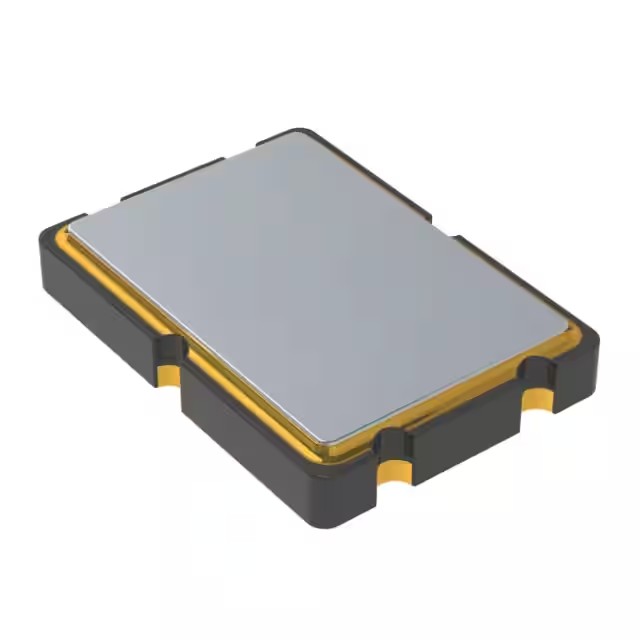

| Part Number | FP0800043 | FP0800046 | FP0800047 | FP0800049 | FP0800013 |
|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active |
| Type | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal |
| Frequency | - | 8 MHz | 8 MHz | 8 MHz | - |
| Frequency Stability | - | ±15ppm | ±50ppm | ±30ppm | - |
| Frequency Tolerance | - | ±10ppm | ±30ppm | ±20ppm | - |
| Load Capacitance | - | 20pF | 18pF | 18pF | - |
| ESR (Equivalent Series Resistance) | - | 60 Ohms | 80 Ohms | 70 Ohms | - |
| Operating Mode | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental |
| Operating Temperature | - | -20°C ~ 70°C | -40°C ~ 85°C | -40°C ~ 85°C | - |
| Ratings | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.045" (1.15mm) | 0.045" (1.15mm) | 0.045" (1.15mm) | 0.045" (1.15mm) | 0.045" (1.15mm) |
