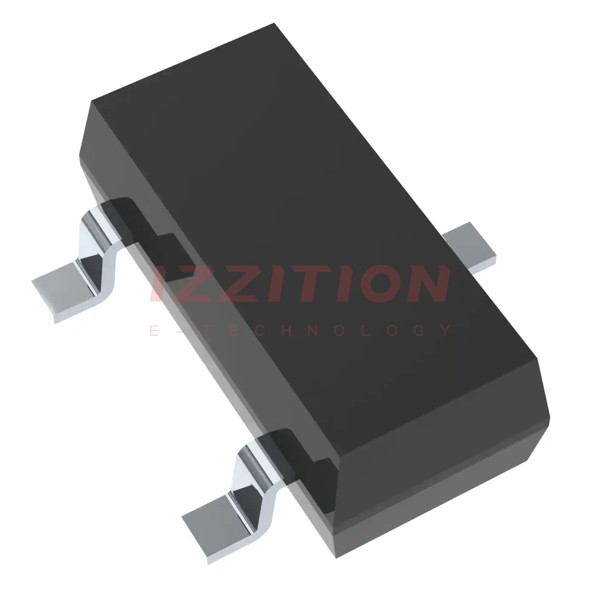

| Part Number | FMMT416TA | FMMT416TD | FMMT417TA | FMMT411TA | FMMT413TA | FMMT415TA |
|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Obsolete | Active | Obsolete | Obsolete |
| Transistor Type | NPN | NPN | NPN - Avalanche Mode | NPN | NPN - Avalanche Mode | NPN - Avalanche Mode |
| Current - Collector (Ic) (Max) | 500 mA | 500 mA | 500 mA | 600 mA | 100 mA | 500 mA |
| Voltage - Collector Emitter Breakdown (Max) | 100 V | 100 V | 100 V | 80 V | 50 V | 100 V |
| Vce Saturation (Max) @ Ib, Ic | 100mV @ 1mA, 10mA | 100mV @ 1mA, 10mA | 500mV @ 1mA, 10mA | 100mV @ 1mA, 10mA | 150mV @ 1mA, 10mA | 500mV @ 1mA, 10mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 10V | 100 @ 10mA, 10V | 25 @ 10mA, 10V | 100 @ 10mA, 10V | 50 @ 10mA, 10V | 25 @ 10mA, 10V |
| Power - Max | 500 mW | 500 mW | 330 mW | 730 mW | 330 mW | 330 mW |
| Frequency - Transition | 40MHz | 40MHz | 40MHz | 40MHz | 150MHz | 40MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 (Type DN) | SOT-23 | SOT-23-3 | SOT-23 (Type DN) | SOT-23-3 | SOT-23-3 |
