Please send RFQ , we will respond immediately.

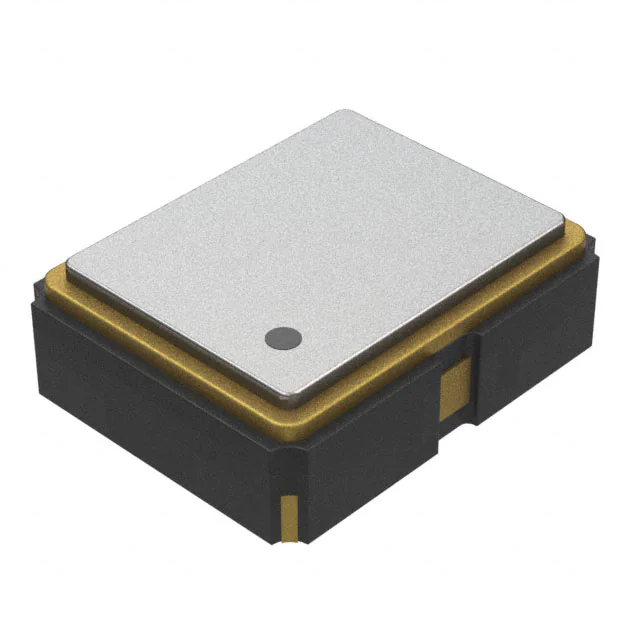

| Part Number | FJ2500011 | FJ2500014 | FJ2500016 | FJ2500021 | FJ2500031 | FJ2500041 | FJ2400011 | FJ2500010 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Base Resonator | Crystal | Crystal | Crystal | Crystal | Crystal | Crystal | Crystal | Crystal |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 25 MHz | 25.000625 MHz | 25 MHz | 25 MHz | - | - | 24 MHz | 25 MHz |
| Function | - | Enable/Disable | Enable/Disable | - | - | - | Enable/Disable | - |
| Output | CMOS | CMOS | CMOS | CMOS | - | - | LVCMOS | CMOS |
| Voltage - Supply | 3.3V | 2.5V | 1.8V | 3.3V | - | - | 3.3V | 3.3V |
| Frequency Stability | - | - | - | - | - | - | ±50ppm | - |
| Absolute Pull Range (APR) | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 85°C | -20°C ~ 70°C | - | - | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - | - | - | - | - | - |
| Current - Supply (Max) | - | 8mA | 6mA | - | - | - | 10mA | - |
| Ratings | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | - | 0.039" (1.00mm) | 0.039" (1.00mm) | - | - | - | 0.039" (1.00mm) | - |
