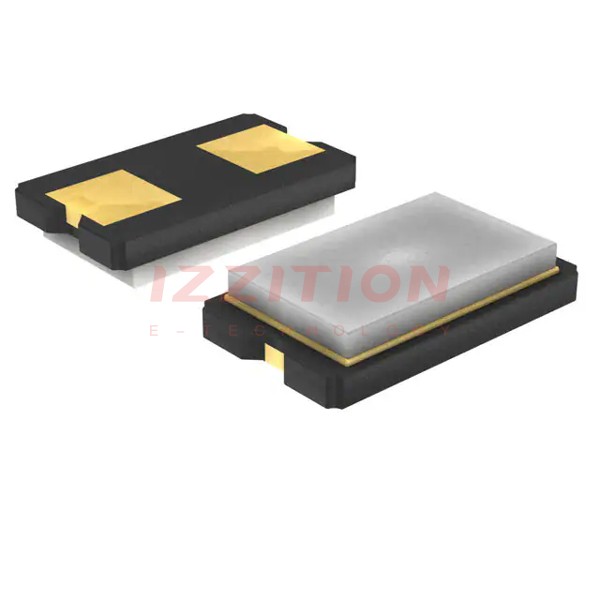

| Part Number | F61200046 | F61200041 | F61200045 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | MHz Crystal | MHz Crystal | MHz Crystal |
| Frequency | 12 MHz | 12 MHz | - |
| Frequency Stability | ±30ppm | ±20ppm | - |
| Frequency Tolerance | ±20ppm | ±20ppm | - |
| Load Capacitance | 18pF | 20pF | - |
| ESR (Equivalent Series Resistance) | 60 Ohms | 50 Ohms | - |
| Operating Mode | Fundamental | Fundamental | Fundamental |
| Operating Temperature | -40°C ~ 85°C | -20°C ~ 70°C | - |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead |
| Size / Dimension | 0.236" L x 0.138" W (6.00mm x 3.50mm) | 0.236" L x 0.138" W (6.00mm x 3.50mm) | 0.236" L x 0.138" W (6.00mm x 3.50mm) |
| Height - Seated (Max) | 0.053" (1.35mm) | 0.053" (1.35mm) | 0.053" (1.35mm) |
