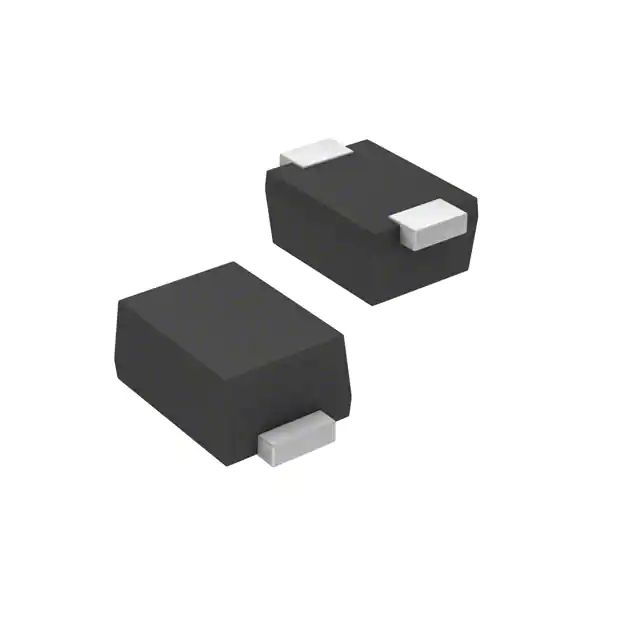

| Part Number | DZ9F20S92-7 | DZ9F24S92-7 | DZ9F22S92-7 | DZ9F10S92-7 |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 20 V | 24 V | 22 V | 10 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 200 mW | 200 mW | 200 mW | 200 mW |
| Impedance (Max) (Zzt) | 55 Ohms | 70 Ohms | 55 Ohms | 30 Ohms |
| Current - Reverse Leakage @ Vr | 100 nA @ 15.4 V | 100 nA @ 18.9 V | 100 nA @ 16.8 V | 100 nA @ 7 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-923 | SOD-923 | SOD-923 | SOD-923 |
| Supplier Device Package | SOD-923 | SOD-923 | SOD-923 | SOD-923 |
