Please send RFQ , we will respond immediately.

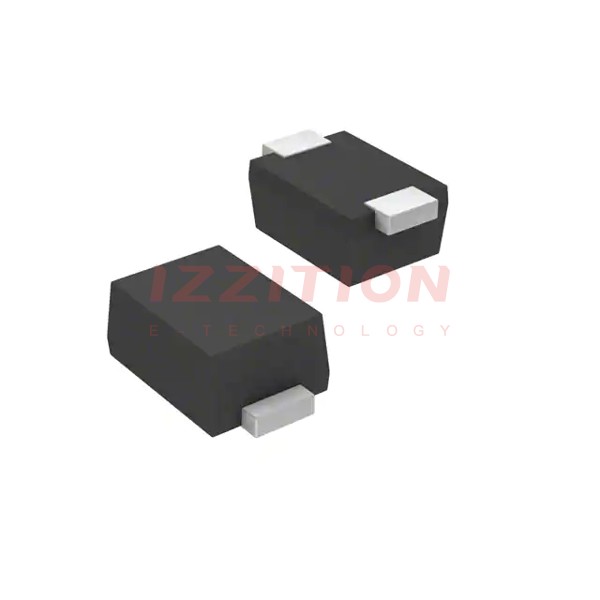

| Part Number | DZ9F16S92-7 | DZ9F18S92-7 | DZ9F10S92-7 | DZ9F11S92-7 | DZ9F12S92-7 | DZ9F13S92-7 | DZ9F15S92-7 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 16 V | 18 V | 10 V | 11 V | 12 V | 13 V | 15 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power - Max | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW | 200 mW |
| Impedance (Max) (Zzt) | 50 Ohms | 50 Ohms | 30 Ohms | 30 Ohms | 30 Ohms | 37 Ohms | 42 Ohms |
| Current - Reverse Leakage @ Vr | 100 nA @ 12 V | 100 nA @ 14 V | 100 nA @ 7 V | 100 nA @ 8 V | 100 nA @ 9 V | 100 nA @ 10 V | 100 nA @ 11 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-923 | SOD-923 | SOD-923 | SOD-923 | SOD-923 | SOD-923 | SOD-923 |
| Supplier Device Package | SOD-923 | SOD-923 | SOD-923 | SOD-923 | SOD-923 | SOD-923 | SOD-923 |
